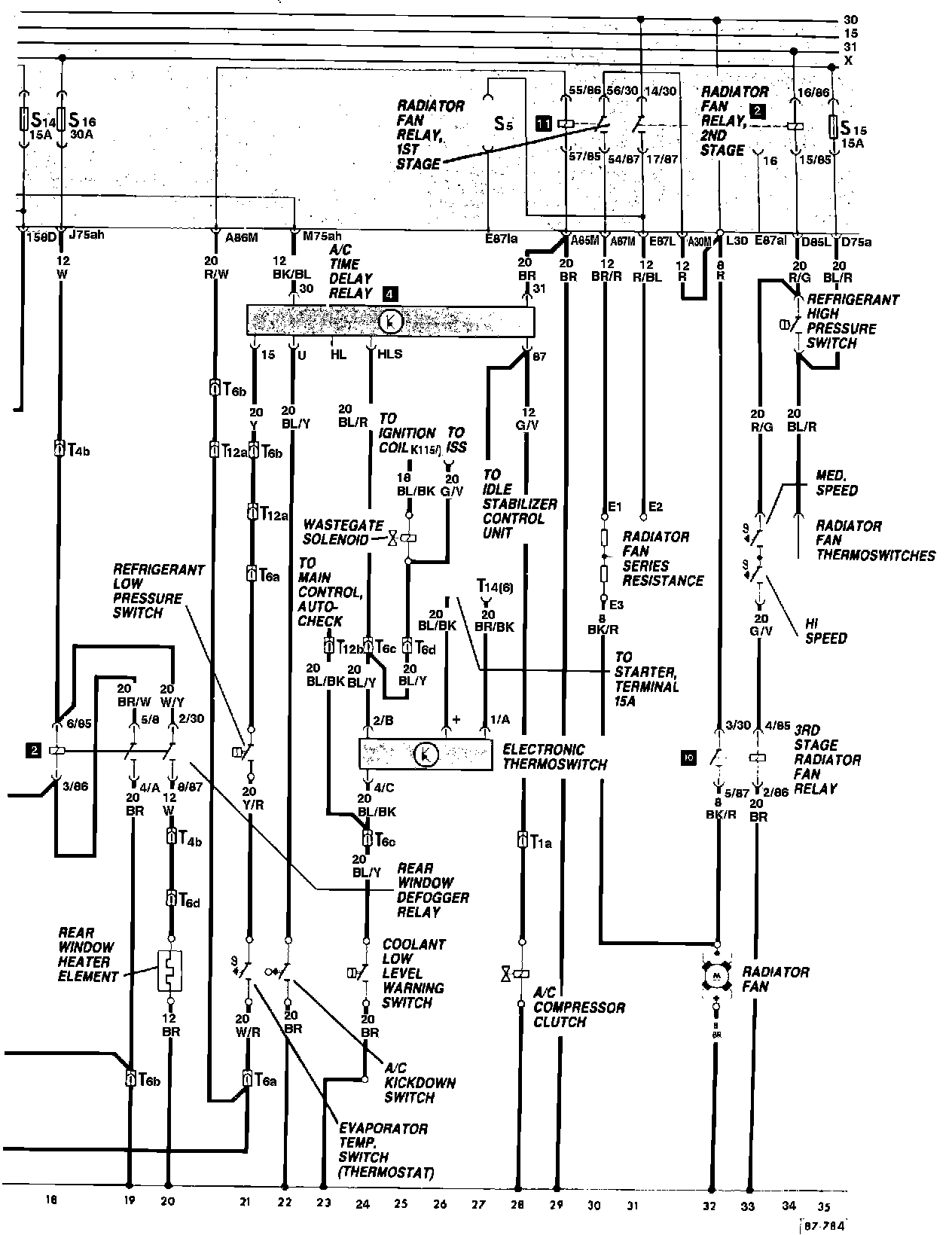

Air Conditioning

Current
Description Track

A/C compressor clutch 28
A/C control head 5-17
A/C evaporator temp. sensor 21
A/C kickdown switch 22
A/C programmer 7-11
A/C programmer motor 6-11
A/C time delay relay 21-28

Blower control unit 3-6

Electronic thermoswitch 24-27

Fan motor, inside air temp. sensor 1
Fresh air blower 2
Fresh air blower thermoswitch 12

Radiator cooling fan relay, 1st stage 29,30
Radiator cooling fan relay, 2nd stage 31,33
Radiator cooling fan relay, 3rd stage 32,33
Radiator cooling fan thermoswitch 33
Radiator cooling fan thermoswitch 33
Radiator fan 32
Radiator fan series resistance 30,31
Rear window defogger relay 18-20
Rear window heater element 20
Refrigerant high pressure switch 34
Refrigerant low pressure switch 21
Wire Connectors

T - junction box
T1a - single, in engine compartment
T2 - double, in front of radiator
T4a - 4 point, behind instrument panel T4b - 4 point, behind dashboard T4c - 4 point, near A/C compressor clutch T4d - 4 point, behind dashboard T12a - 12 point, behind radio, left side T6a - 6 point, on evaporator T6b - 6 point, behind dashboard T6c - 6 point, behind dashboard T6d - 6 point, behind dashboard

Relay Location

Fuse/Relay Panel

[2] - radiator cooling fan relay, 2nd stage

[11] - radiator cooling fan relay, 1st stage

Auxiliary Relay Panel

[2] - rear window defogger relay

[4] - A/C time delay relay

[10] - radiator cooling fan relay, 3rd stage
