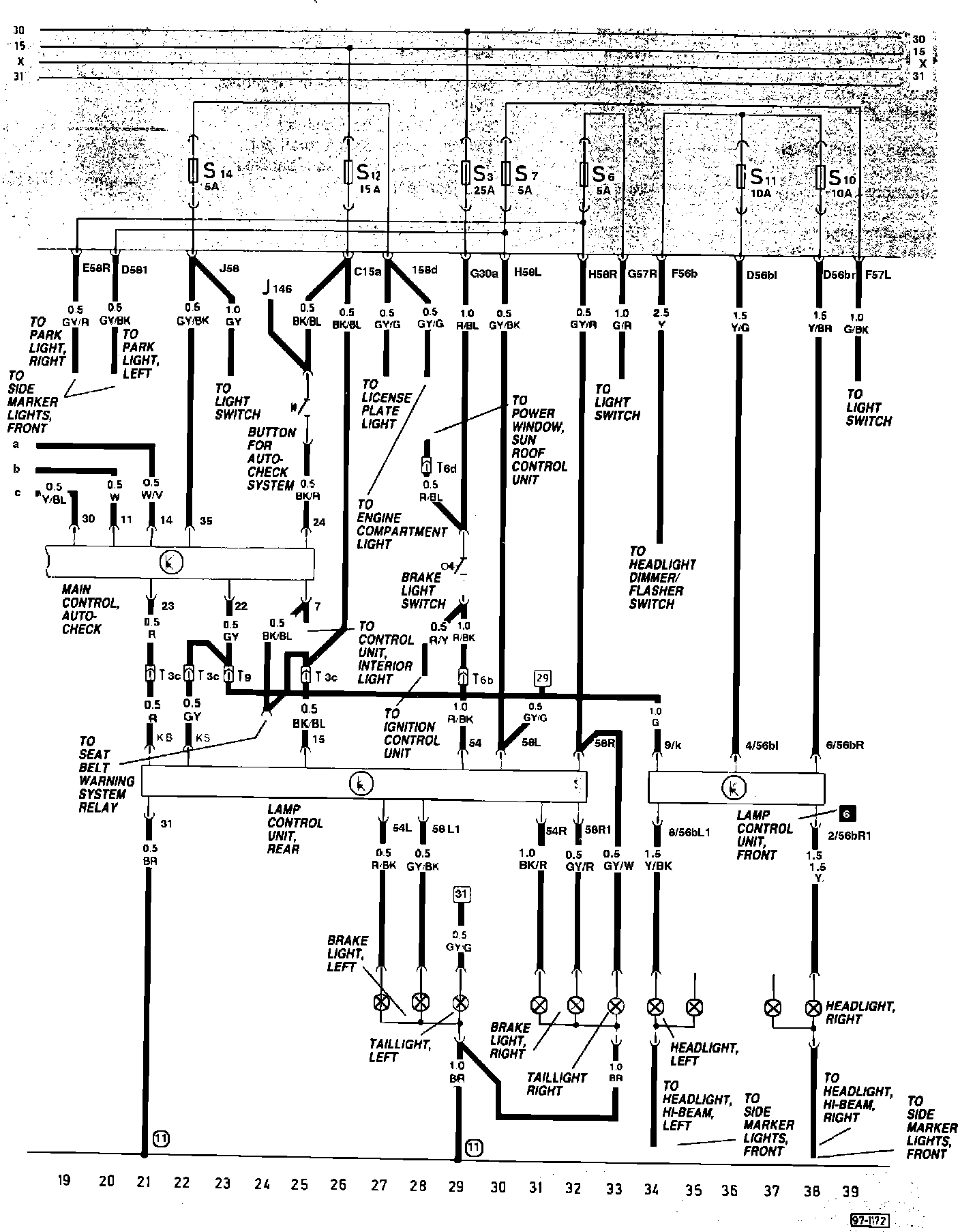

Auto-Check System

Current
Description Track

Alternator warning light 3

Battery voltage warning light 11
Brake fluid level warning light 11
Brake fluid level warning switch 10
Brake light, left 27
Brake light, right 31
Brake light, switch 29
Brake pad wear indicator, left 16,17
Brake pad wear indicator, right 14,15
Brake pad wear warning light 13
Brake warning light 13

Coolant low level warning switch 7
Coolant overheat light 18

Engine oil pressure switch (1.8 bar) 1
Engine oil pressure switch (0.3 bar) 2
Engine oil pressure warning light 12

Fuel reserve warning light 14

Head and tail light warning light 12
Headlight, high beam, left 34
Headlight, high beam, right 38
Headlight, left 34,35
Headlight, right 37,38
Hydraulic fluid level sender 12
Hydraulic pressure warning switch 13

Lamp control unit, front 34-38
Lamp control unit, rear 21-32
License plate light 27

Current
Description Track

Main control, Auto-Check system 1-25

Parking light, left 20
Parking light, right 19

Taillight, left 32,33
Taillight, right 28,29

Warning light, OK symbol 17
Warning light, red triangle symbol 15
Windshield washer level, contact 3

Wire Connectors

T3a - 3 point, engine compartment, right T3b - 3 point, engine compartment, left T3c - 3 point, behind dashboard T6 - 6 point, indicator housing, Auto-Check T6a - 6 point, behind dashboard T6b - 6 point, behind dashboard T6d - 6 point, behind dashboard T8 - 8 point, indicator housing, Auto-Check system
T9 - 9 point, behind dashboard T12 - 12 point, behind dashboard

Ground Connectors

(11) - luggage compartment

(12) - wiring harness, front left

(13) - wiring harness, dashboard
