Fuse/Relay Panel

Fuses Rating
1 - Open 15
2 - Flasher relay, turn signals 15
3 - Horn, cigar lighter, brake lights, clock 25
4 - Luggage comp. light 15
5 - Open
6 - Side marker lights, right 5
7 - Side marker lights, left 5
8 - High beam headlight, right 10
9 - High beam headlight, left 10
10 - Low beam headlight, right 10
11 - Low beam headlight, left 10
12 - Inst. lights, backup lights, Auto-Check, trip. comp. 15
13 - Fuel pump 15
14 - License plate light, engine comp. light 15
15 - Windshield washertwiper 15
16 - Heated rear window 30
17 - Fresh air fan 30
18
19 - Central locking, power mirrors 10
20 - Seat heater 30
21 - Cigar lighter, rear 25
22 - Diesel only (glow plug fuse)
23 - Seat memory, power pass. seat 30
24 - Sunroof 30
25 - Open
26 - Open
27 - Open
28 - Open

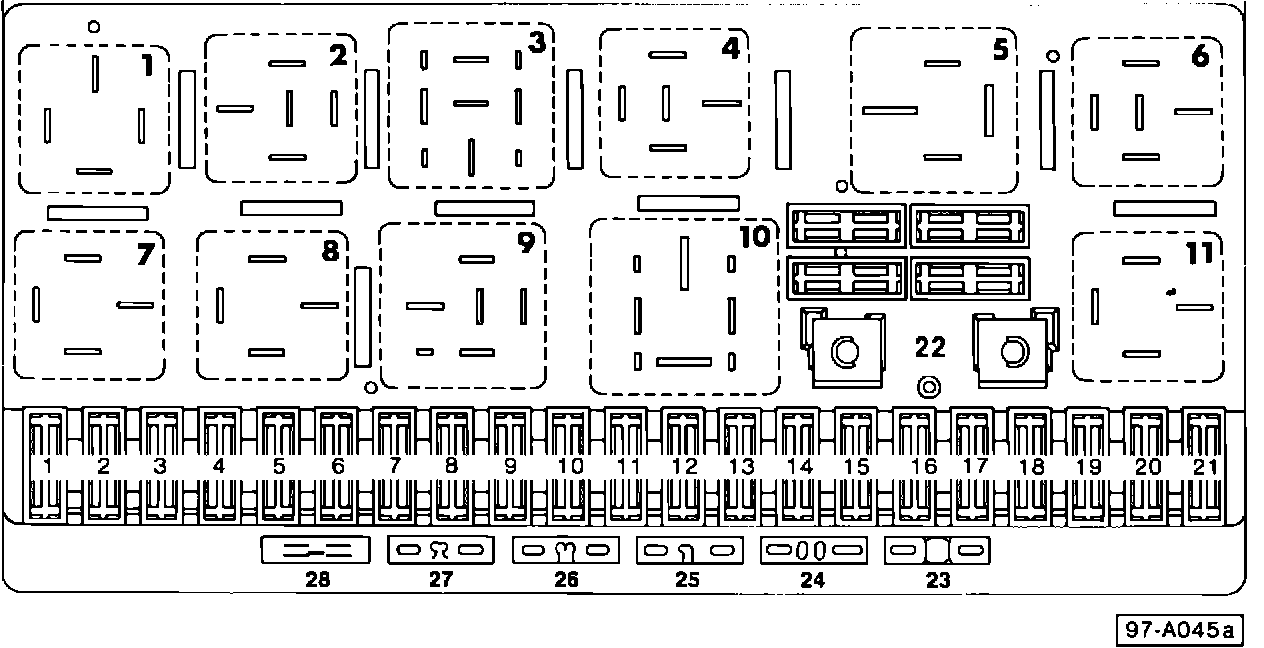

Relay location on Fuse/Relay Panel 1 - Open 2 - Rad. cooling fan. 2nd stage 3 - Open 4 - Open 5 - Load reduction 6 - Open 7 - Horn relay 8 - Auto-trans. relay, starter lockout 9 - Intermittent wiper relay 10 - Fuel pump 11 - Rad. cooling fan, 1st stage
