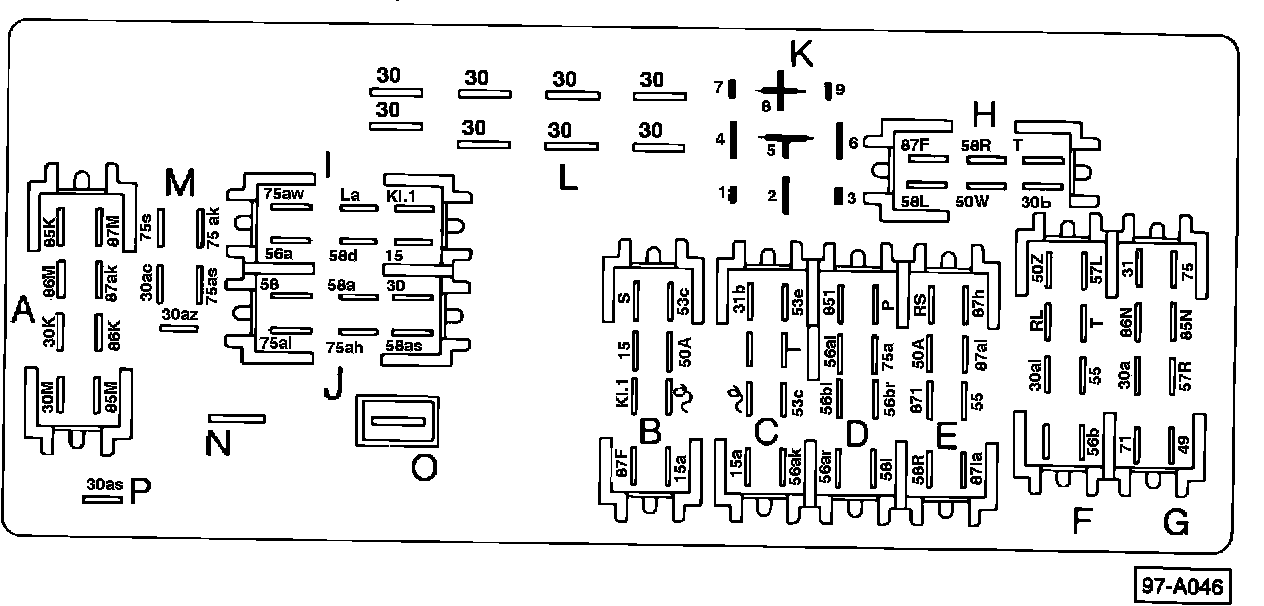

Fuse/Relay Panel, Rear View

A - A/C clutch relay
- A/C clutch cut-out relay (temp)
B - Fuel injection wiring
C - Windshield wipers
D - A/C fan motor, left marker lights
E - Radiator fan, right marker lights
F - Low beam lights, left park lamps
G - Horn, instruments, right park lamps
H - Rear lights
I - High beam lights, high beam indicator light
J - Instrument lights
K - Upshift relay
L - Battery positive (+)
M - Electric windows, sunroof
N - Glow plugs (Diesel only)
P - Connection for fuse 20
Connector colors

A - gray, eight point
B - black, eight point
C - blue, eight point
D - green, eight point
E - yellow, eight point
F - colorless, eight point
G - red, eight point
H - black, six point
I - red, six point
J - yellow, six point
K - black, nine point
L - colorless, single
M - colorless, single point of term. 75ak
3 points of term. 75as, 30ac, 30az
N - colorless, single
O - black, single
P - colorless, single
