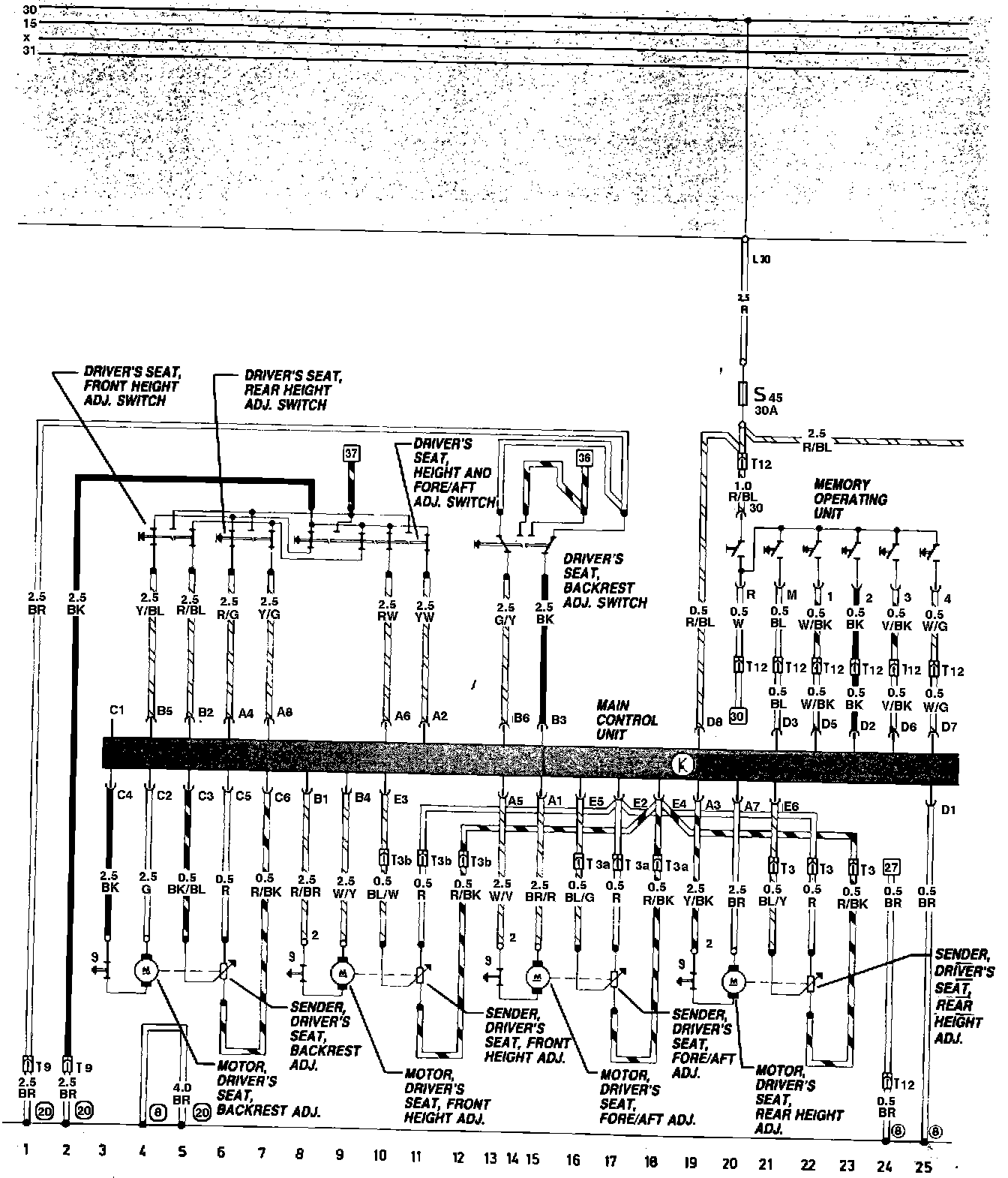

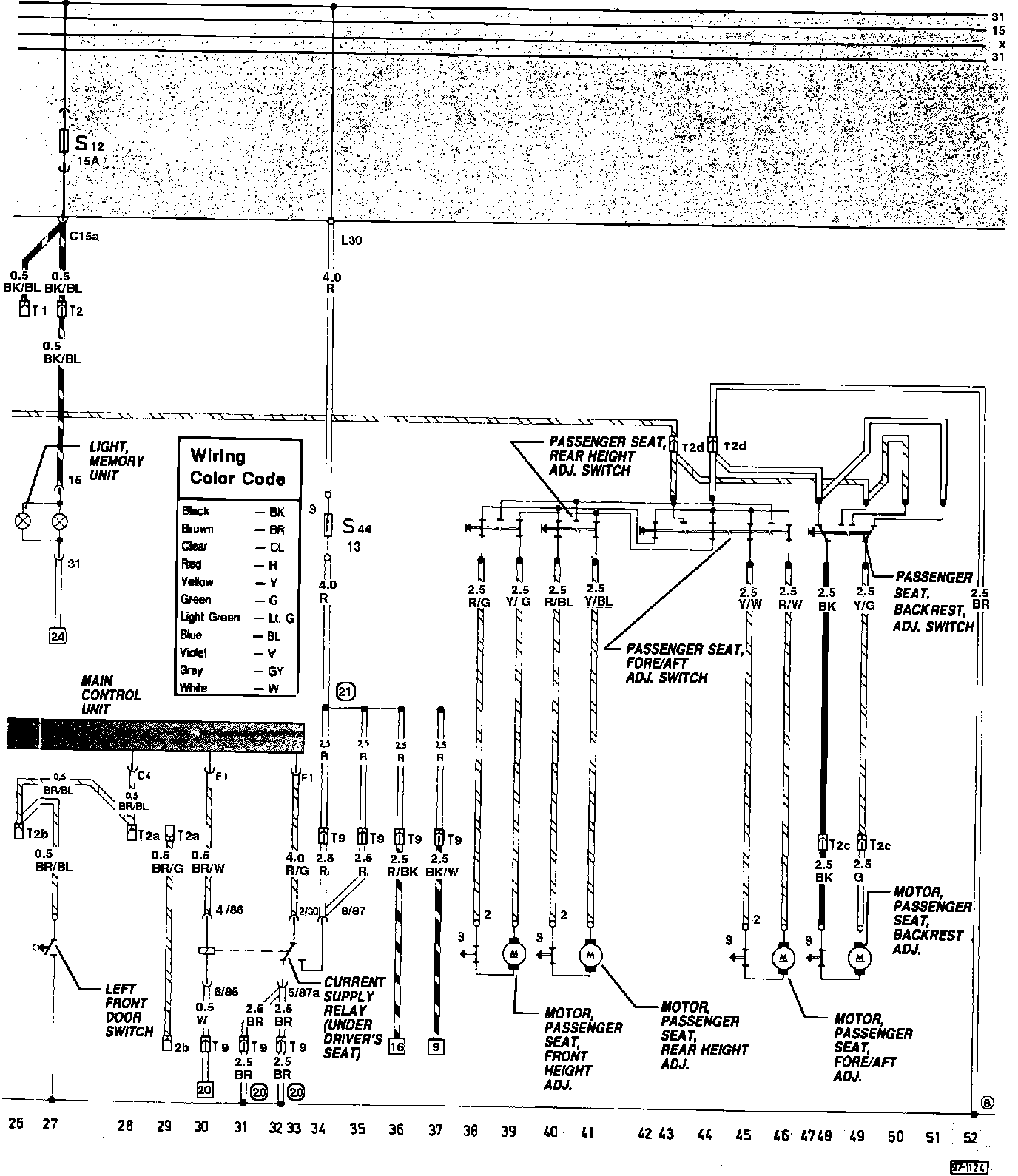

Power Seat With Memory

Current
Description Track

Control unit 3-33
Current supply relay 30-34

Front left door contact switch 27

Light for memory unit 26,27

Memory operating unit 20-25
Motor, driver's seat fore/aft adj. 13-15
Motor, driver's seat front height adj. 8,9
Motor, driver's seat rear height adj. 19,20
Motor, passenger seat fore/aft adj. 45,46
Motor, passenger seat front height
adjustment 38,39
Motor, passenger seat rear height
adjustment 40,41
Motor, driver's backrest adj. 3,4
Motor, passenger's backrest adj. 48,49

Passenger seat, fore/aft adj. switch 42-46
Passenger seat, front height adj.
switch 38,39
Passenger seat, rear height adj. seat 40,41

Sender, driver's seat fore/aft adj. 16,17
Sender, driver's seat front height adj. 10,11
Sender, driver's seat rear height adj. 21,22
Sender, driver's seat backrest adj. 5,6

Current
Description Track

Switch, driver's seat front height adj. 4-5
Switch, driver's seat rear height adj. 6-7
Switch, driver's backrest adj. 13-15
Switch, driver's seat fore/aft adj. 8-11
Switch, passenger's seat backrest

adjustment 48,49

Wire Connectors

T1 - single, behind dashboard T2 - 2 point, behind dashboard T2a - 2 point, behind dashboard T2b - 2 point, behind dashboard T2c - 2 point, front passenger's seat T2d - 2 point, under front passenger's seat T3 - 3 point, under driver's seat T3a - 3 point, under driver's seat T3b - 3 point, under driver's seat T9 - 9 point, under driver's seat T12 - 12 point, behind dashboard

Fuse

S12 - in fuse/relay panel S44 - thermofuse, auxiliary relay panel S45 - in fuse/relay panel

Ground Connections

(8) - behind dashboard

(20) - in wiring harness for seat adj.

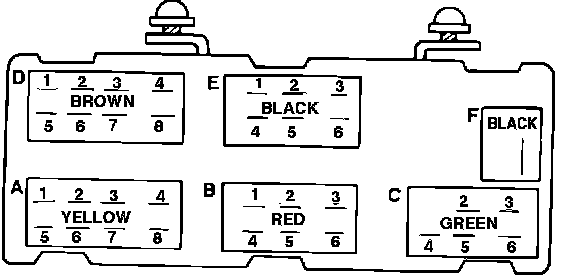

CONTROL UNIT CONNECTORS, UNDER DRIVER'S SEAT:

A - Yellow B - Red C - Green D - Brown E - Black F - Black (single)
