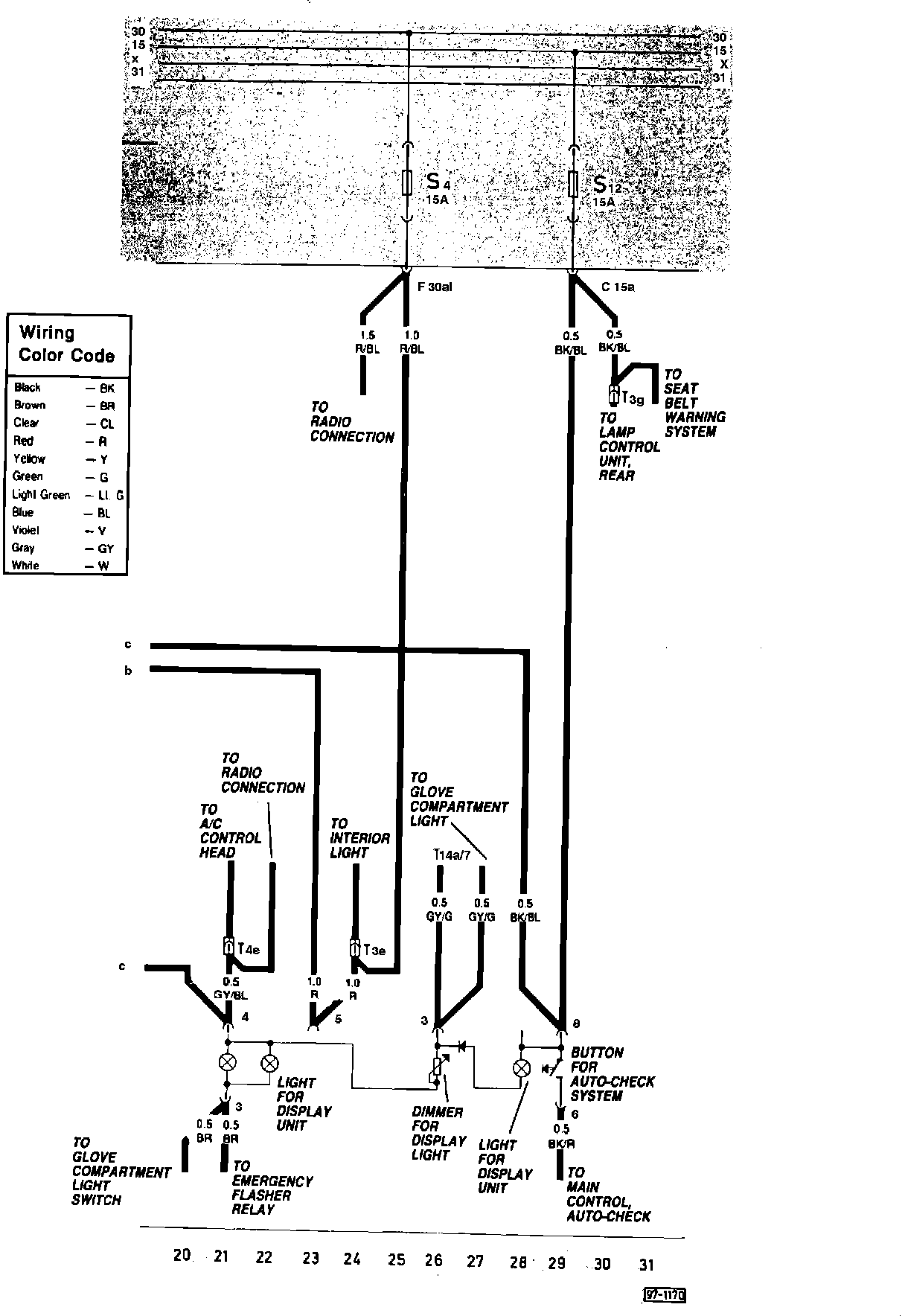

Trip Computer

Current
Description Track

Button, Auto-Check system 29

Coolant temperature gauge 10
Control light dimmer 26
Control unit for display 1-18

Display unit 4-13

Fuel gauge 11
Function selector, trip computer 15-17

Lights for display unit 21,22,28

Reset button, trip computer 18
Wire Connectors

T3e - 3 point, behind dashboard T3g - 3 point, behind dashboard T4 - 4 point, behind dashboard T4e - 4 point, behind dashboard T12 - 12 point, behind dashboard T14 - 14 point, instrument panel T14a - 14 point, instrument panel

Ground Connectors

(13) - wiring harness, dashboard
