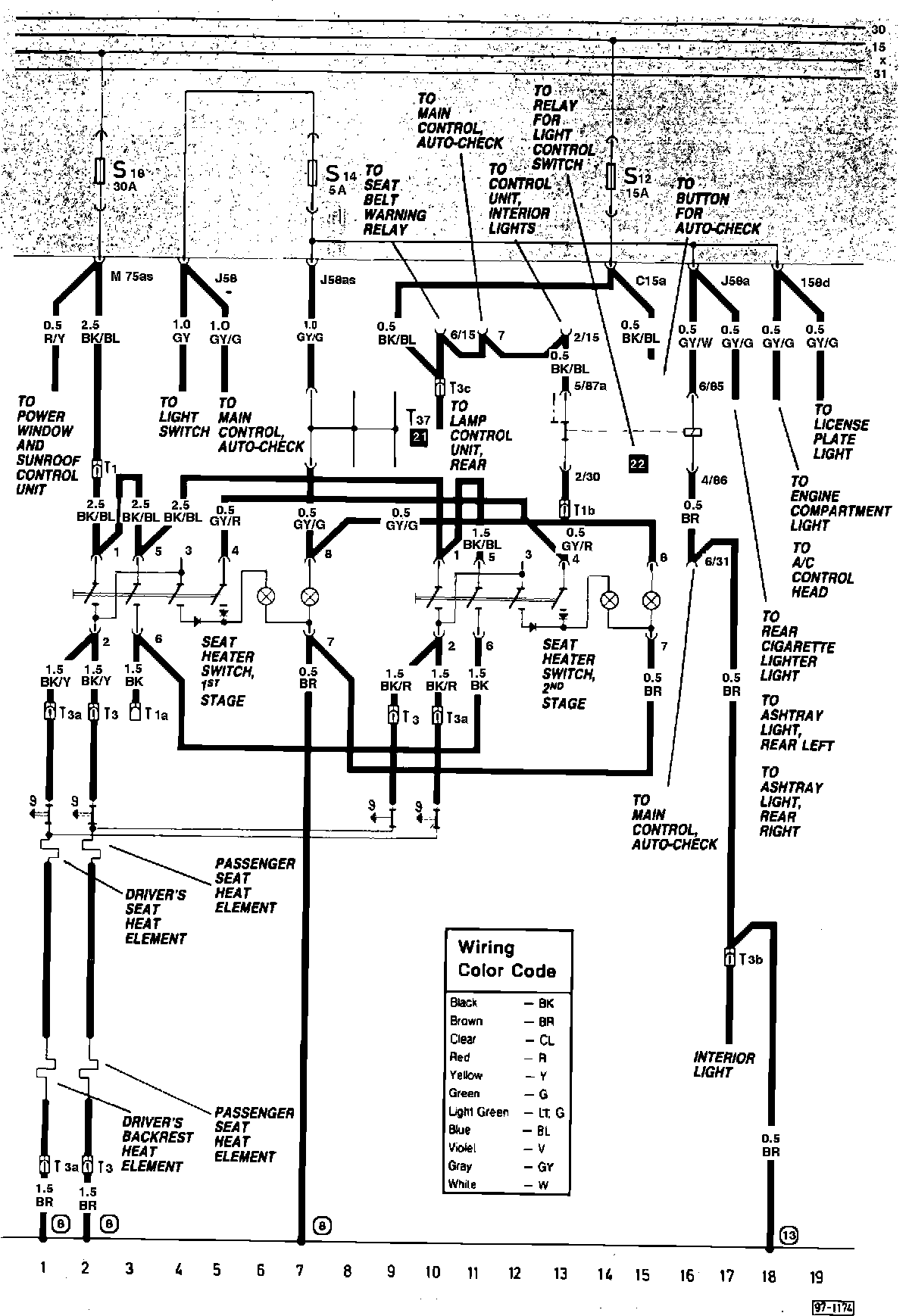

Heated Seats

Current
Description Track

Heat element, driver's seat 1
Heat element, driver's backrest 1
Heat element, passenger seat 2
Heat element, passenger backrest 2

Relay, light control switch 13-16

Seat heater switch, first stage 2-7
Seat heater switch, second stage 10-15
Wire Connectors

T1 - single, behind dashboard T1a - single, behind dashboard (connection for heated back seats)
T1b - single, behind dashboard T3 - 3 point, under driver's seat T3a - 3 point, under passenger seat T3b - 3 polnt, behind dashboard T3c - 3 point, behind dashboard T37 - 37 point, wire distributor

Ground Connector

(8) - behind dashboard

(13) - wiring harness, dashboard
