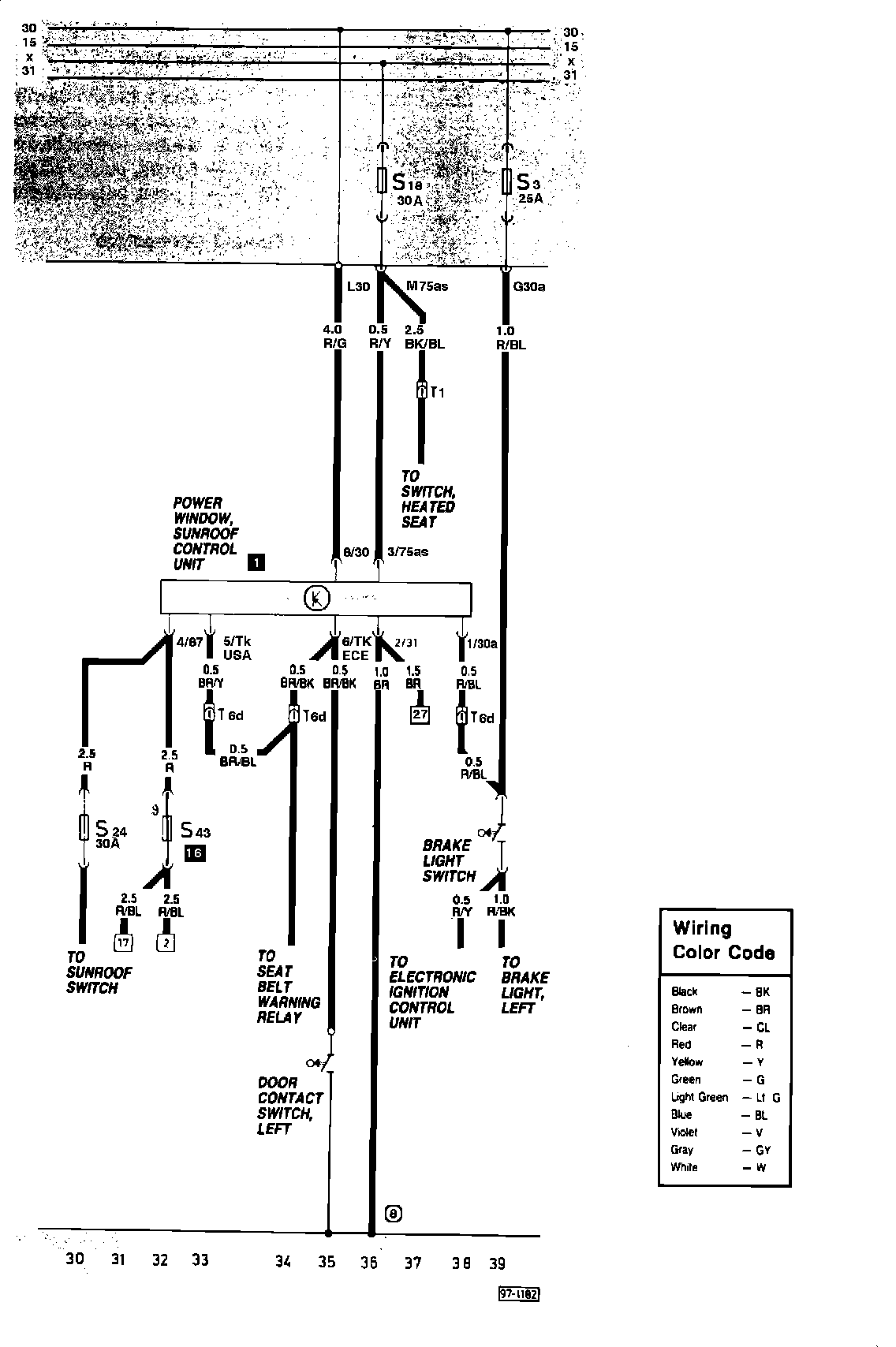

Power Windows

Current
Description Track

Brake light, left 39
Brake light, switch 39

Cigarette lighter, rear 15

Door contact switch, left 35

Electronic ignition control unit 38

Power window lockout 19
Power window relay 2-6

Window motor, driver's door 8
Window motor, left rear door 14
Window motor, passenger door 26
Window motor, right rear door 21
Window/sunroof control unit 32-38
Window switch, LF, in driver's door 6-11
Window switch, LR, in driver's door 13-17
Window switch, RF, in driver's door 25-29
Window switch, RR, in driver's door 20-24
Window switch, left rear door 13-17
Window switch, passenger door 25-29
Window switch, right rear door 20-24
Wire Connectors

T1 - single, behind dashboard T2 - double, behind dashboard T2a - double, passenger door T6d - 6 point, behind dashboard T9 - 9 point, behind dashboard T9a - 9 point, behind dashboard

Ground connectors

(8) - behind dashboard

�� :

Power windows



Power windows

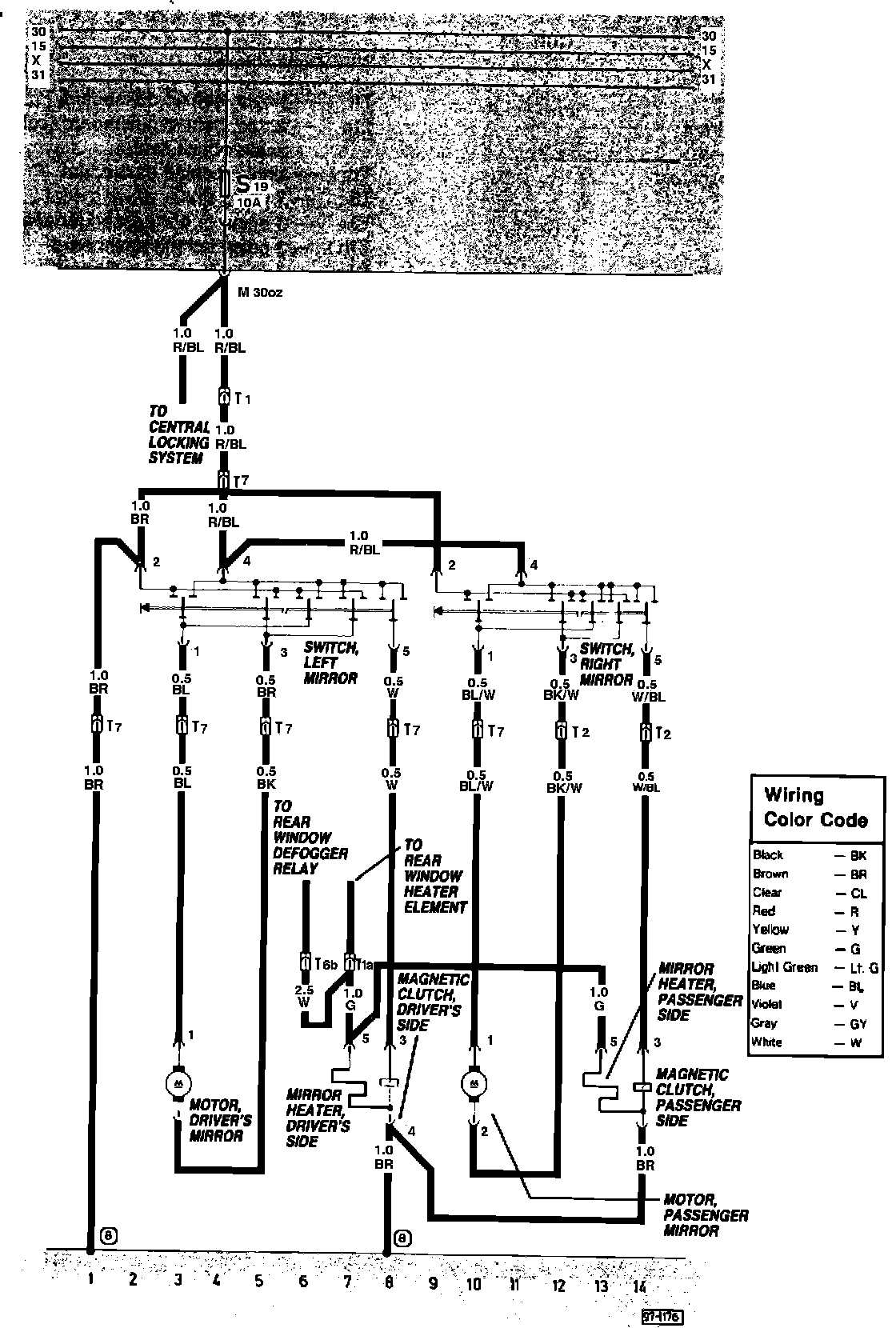

Power mirrors Current
Description Track

Central locking system switch 3

Mirror heater, left 7
Mirror heater, right 13
Mirror magnetic clutch, left 8
Mirror magnetic clutch, right 14
Mirror motor, left 3
Mirror motor, right 10
Mirror switch, left 2-8
Mirror switch, right 9-14

Rear window defogger relay 6
Rear window heater element 7

Wire Connectors

T1 - single, behind dashboard T1a - single, behind dashboard T2 - double, behind dashboard T6b - 6 point, behind dashboard T7 - 7 point, behind dashboard

Ground Connectors

(8) - behind dashboard



Power mirror
