Driver/Vehicle Information Display

Trip Computer

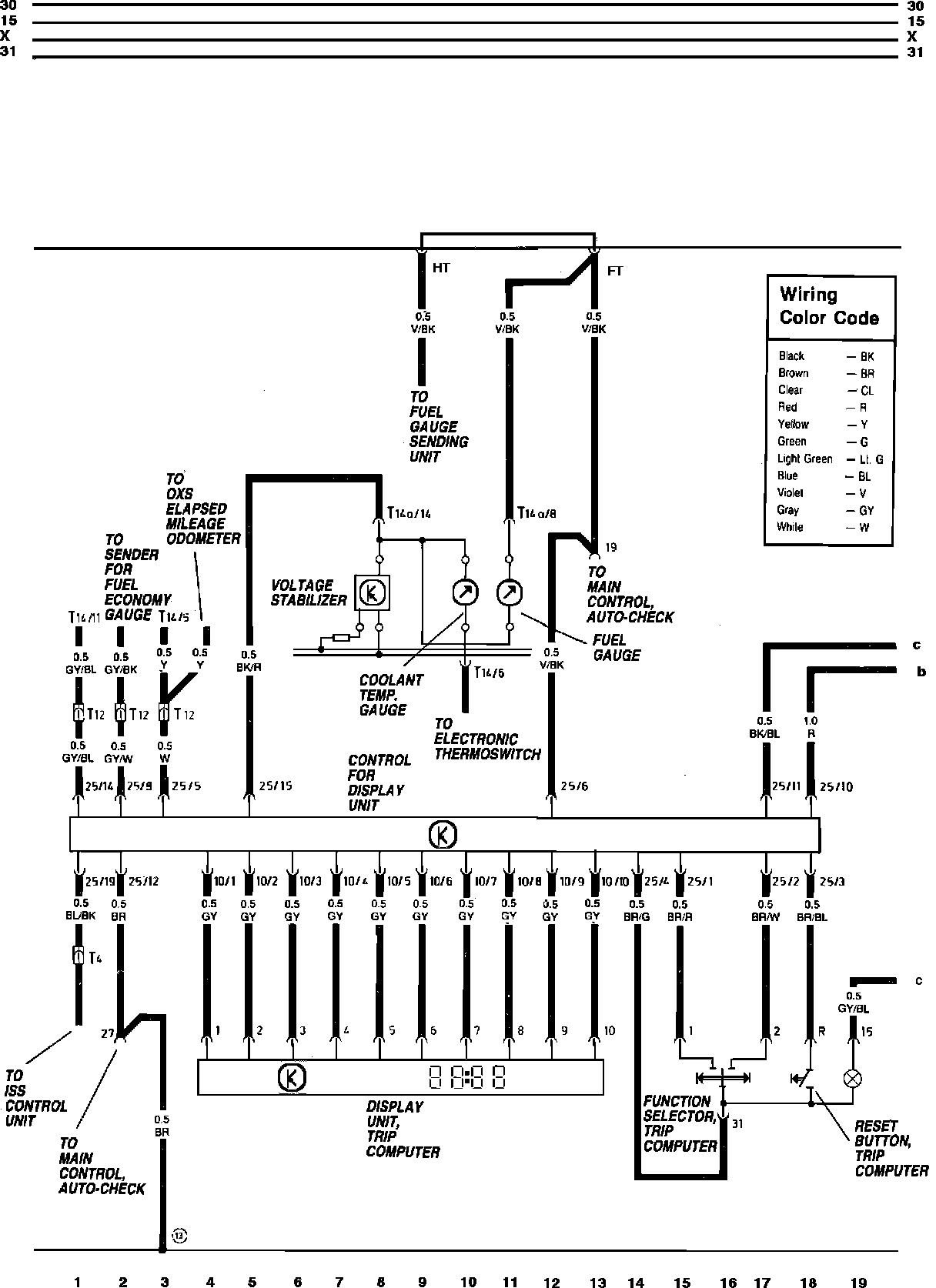

Tracks 1-19:

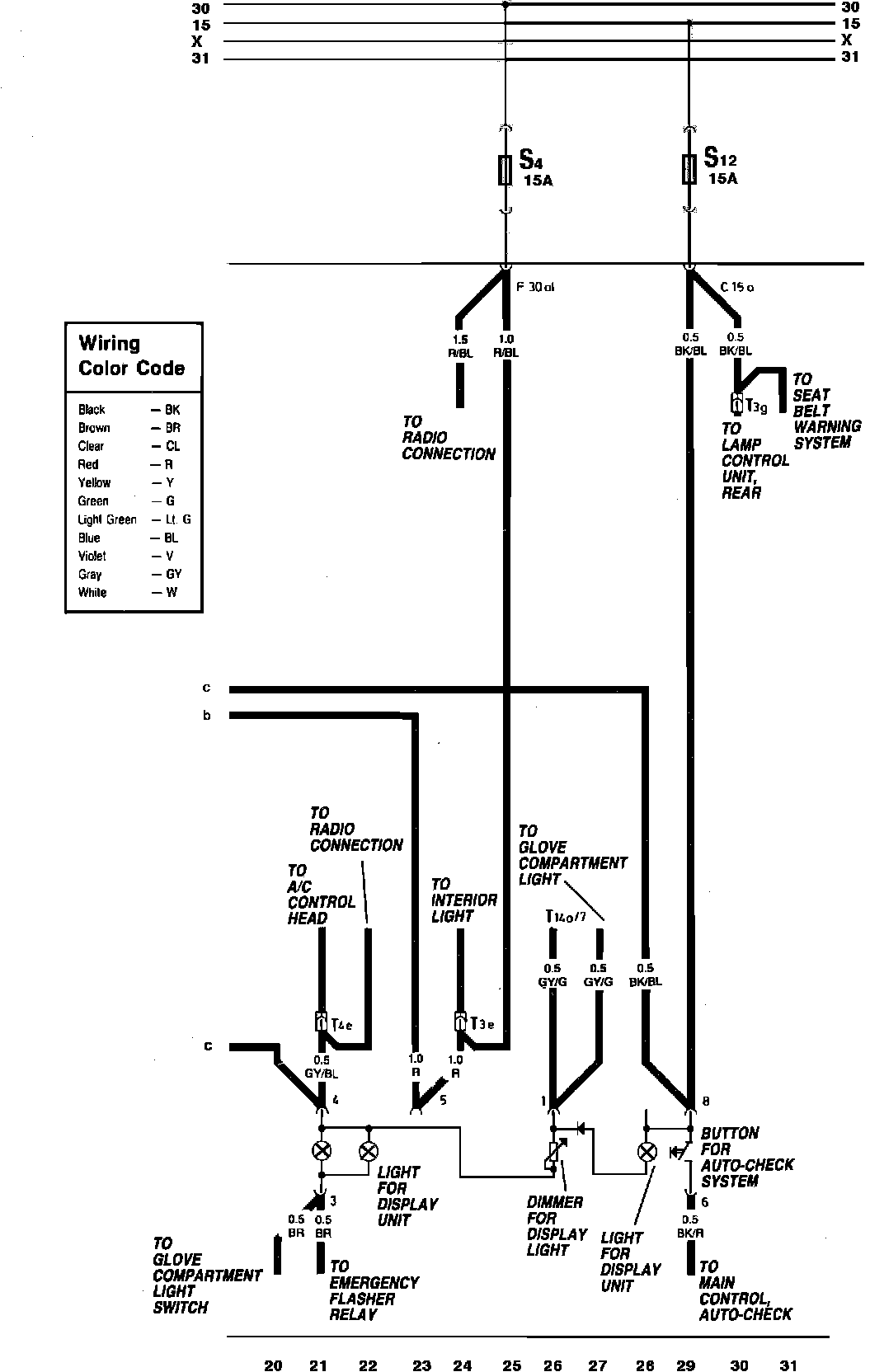

Tracks 20-31:

Main Fuse/Relay Panel:

Auxiliary Relay Panel:

Additional Relay Panel:

Description Current Track
Button, Auto-Check system 29
Coolant temperature gauge 10
Control light dimmer 26
Control unit for display 1-18
Display unit 4-13
Fuel gauge 11
Function selector, trip computer 15-17
Lights for display unit 21, 22, 28
Reset button, trip computer 18

Wire Connectors
T3e - 3 point, behind dashboard
T3g - 3 point, behind dashboard
T4 - 4 point, behind dashboard
T4e - 4 point, behind dashboard
T12 - 12 point, behind dashboard
T14 - 14 point, instrument panel
T14a - 14 point, instrument panel

Ground Connectors
13 - wiring harness, dashboard
