Hydraulic Pump Banjo Bolt - Replacement

89audi09

Applies TO: 5000 m.y. 1984-1988


Subject: Hydraulic pump banjo bolt replacement


Number: Group:

89-03
November 30, 1989 48


Brakes ^ Steering

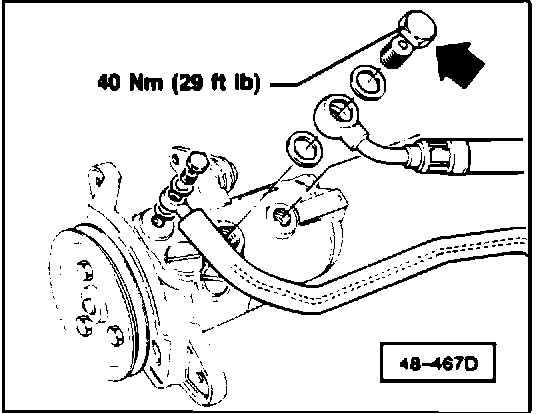

Whenever the hydraulic pump is replaced the suction inlet line banjo bolt (arrow) must also be replaced.




All hydraulic pumps must be matched with a banjo bolt Part Number from the chart below. Previously, the chart was used only for pumps with a silver tag.


Cods No. on Use Identification
pump tag (arrow) Part No. on head of bolt

1 N 021 072.2 none

2 N 902 670.01 1 groove

3 N 902 669.01 2 grooves

no number N 902 670.01 1 groove


CAUTION

Part numbers are for reference only. Always check with your Parts Department for latest information.
