Trip Computer: Service and Repair

- Remove instrument cluster.

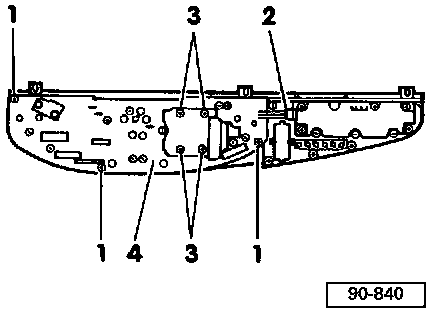

- Remove screws -1-, -2- and -3-.
- Remove cover -4-.

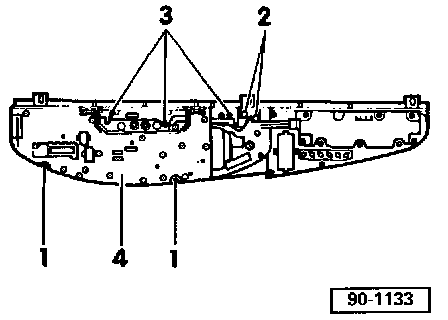

- Remove screws -1-.
- Remove connector -2- from side panel.
- Remove screws -3-.
- Remove instrument support -4- from front frame.
- Remove speedometer and tachometer.

NOTE: Rubber caps must be installed on legs of tachometer.

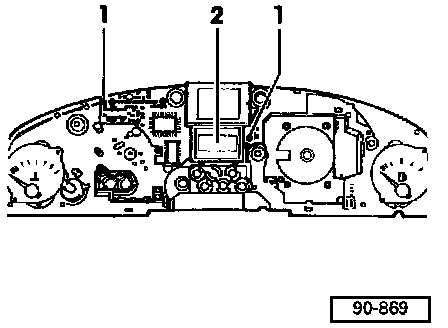

- Remove screws -1-.
- Remove display unit -2-.
Install in reverse order of removal.
