Fuel Gauge: Service and Repair

- Remove instrument cluster.





- Remove screws -1-, -2-, and -3-.
- Remove cover -4-.

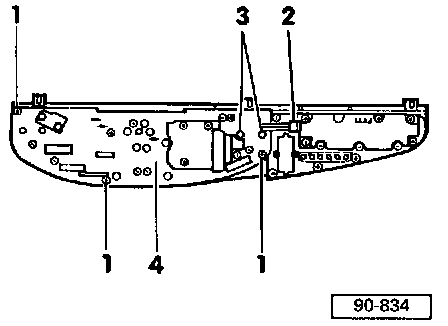

- Remove screws -1-.





- Remove connector -2- from side panel.
- Remove nuts -3-.
- Remove instrument support -4- from front frame.
- Bend retaining tab open and remove fuel gauge.
Install in reverse order of removal.
