Speedometer Head: Service and Repair

- Remove instrument cluster.

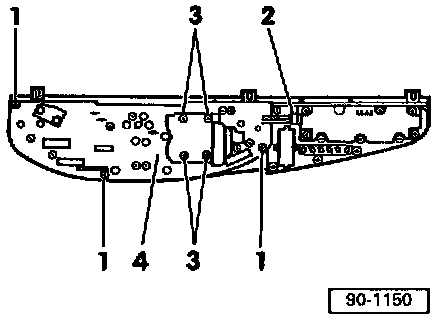

- Remove screws -1-, -2- and -3-.





- Remove cover -4-.
- Remove screws -1- and -3-.
- Remove connector -2- from side panel.
- Remove instrument support -4- from front frame.
- Remove speedometer.

Install in reverse order of removal.
