Tachometer: Service and Repair

- Remove instrument cluster.





- Remove screws -1-, -2- and -3-.
- Remove cover -4-.

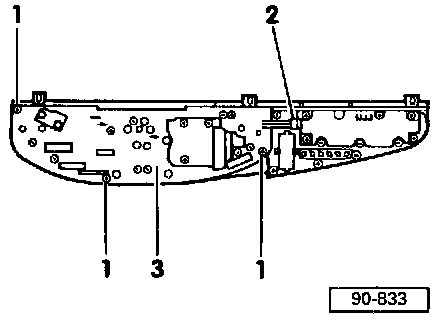

- Remove screws -1-.





- Remove connector -2- from side panel.
- Remove instrument support -3- from front frame.
- Remove tachometer.

Install in reverse order of removal noting the following:

- Ensure rubber caps are installed over tachometer legs.
