Telephone System Components

CELLULAR TELEPHONE, SYSTEM COMPONENTS (S4)

1 - Short cord
^ provides wire connection flexibility so armrest can swing up or down

2 - Grommet
3 - Handset cable guide
4 - Washer
5 - Screw
6 - Handset eight-pin modular connector
^ terminal identification

7 - Short cord mounting plate
8 - Screw
9 - Handset cord

10 - Handset
^ located in driver armrest
^ remove by lifting from cradle and unplugging cord connection

11 - Cradle
^ fastened to driver armrest

12 - Screw
^ 4 pieces

13 - Armrest




HANDSET CRADLE, ASSEMBLY (100S, 100CS)

1 - Upper handset cradle
2 - Template
^ used to mark and drill a 5 mm (13/64 in.) hole in center of lower handset cradle 4 when installing telephone

3 - Screw - 1 Nm (9 in. lb)
4 - Lower handset cradle
5 - Handset bracket
6 - Plastic expanding nut
7 - Center console
8 - Screw - 2.5 Nm (22 in. lb)
9 - Hole - 5 mm (13/64 in.)
^ drilled using template 2 when telephone is installed

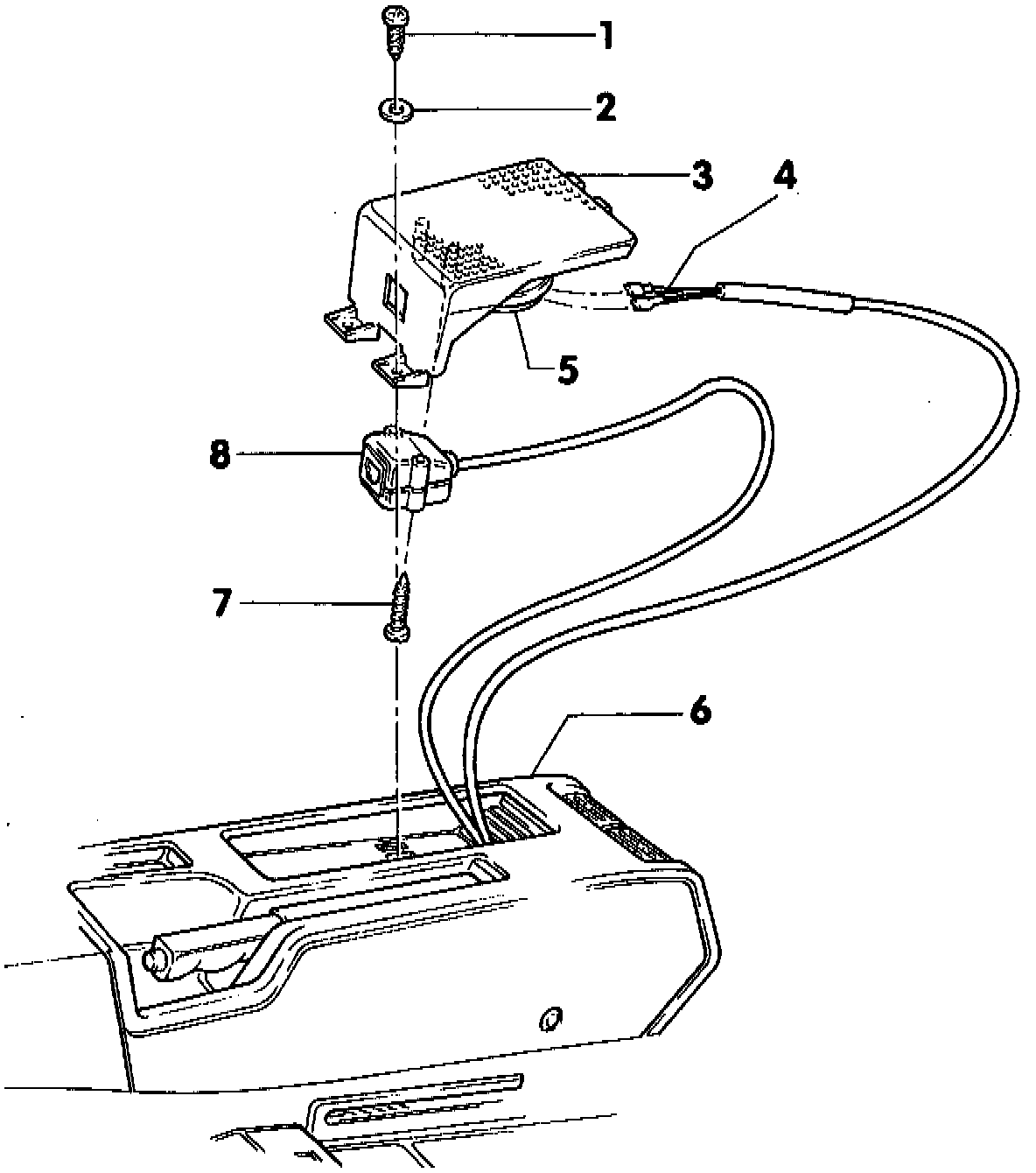

HAND-FREE SPEAKER, ASSEMBLY (100S, 100CS)

1 - Screw - 1.5 Nm (13 in. lb)
2 - Washer
3 - Speaker grill
4 - Speaker wire harness
5 - Speaker
^ removing/installing

6 - Center console
7 - Screws - 1 Nm(9 in. lb)
8 - Telephone handset modular connector




HANDS-FREE MICROPHONE, ASSEMBLY

1 - Left A-pillar trim
2 - Microphone harness connector
3 - Insulating wrap
^ wraps around connector and wire

4 - Microphone connector
5 - Trim cover
6 - Screw
7 - Hands-free microphone
