Vacuum Pump, Removing

VACUUM PUMP, REMOVING

- Open hood

- Remove engine cover (it installed)




- Remove the intake air tube between the Mass Air Flow sensor and the intake air hose

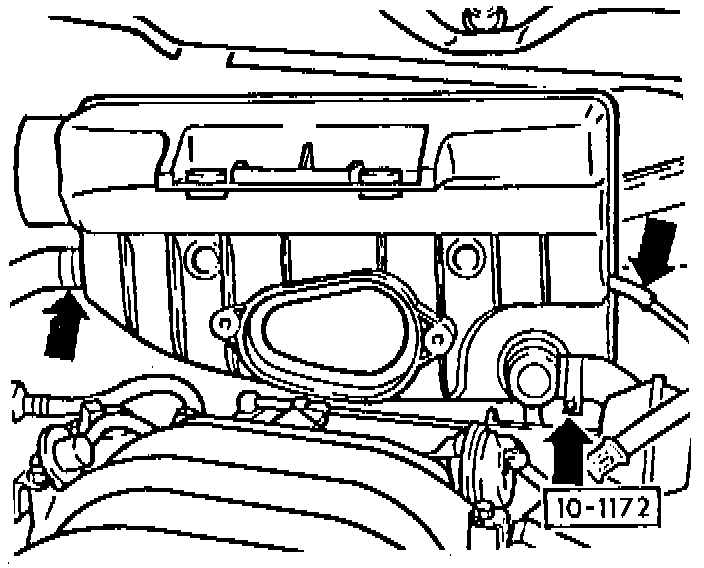

- Unclip cover at the intake air silencer, unscrew both bolts, push silence? backward and lift upward




- Disconnect both crankcase breather hoses, disconnect vacuum hose and remove

- Remove the tie wrap if necessary

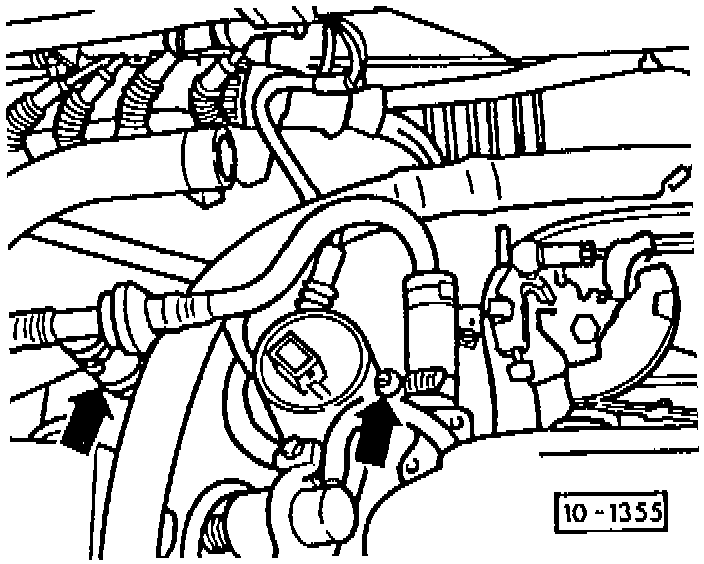

- Disconnect the vacuum pipe at the intake manifold and vacuum pump

- Loosen clips and disconnect fuel line




- Loosen clips and disconnect line to EVAP canister purge solenoid valve

- Remove vacuum pump




- pull piston out of the camshaft

- Detach intermediate flange
