Operation CHARM
: Car repair manuals for everyone.
Home
>>
Audi
>>
1995
>>
90S, CS V6-2.8L (AFC)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Electrical Test Tables
>>
Test Step, 5
Test Step, 5

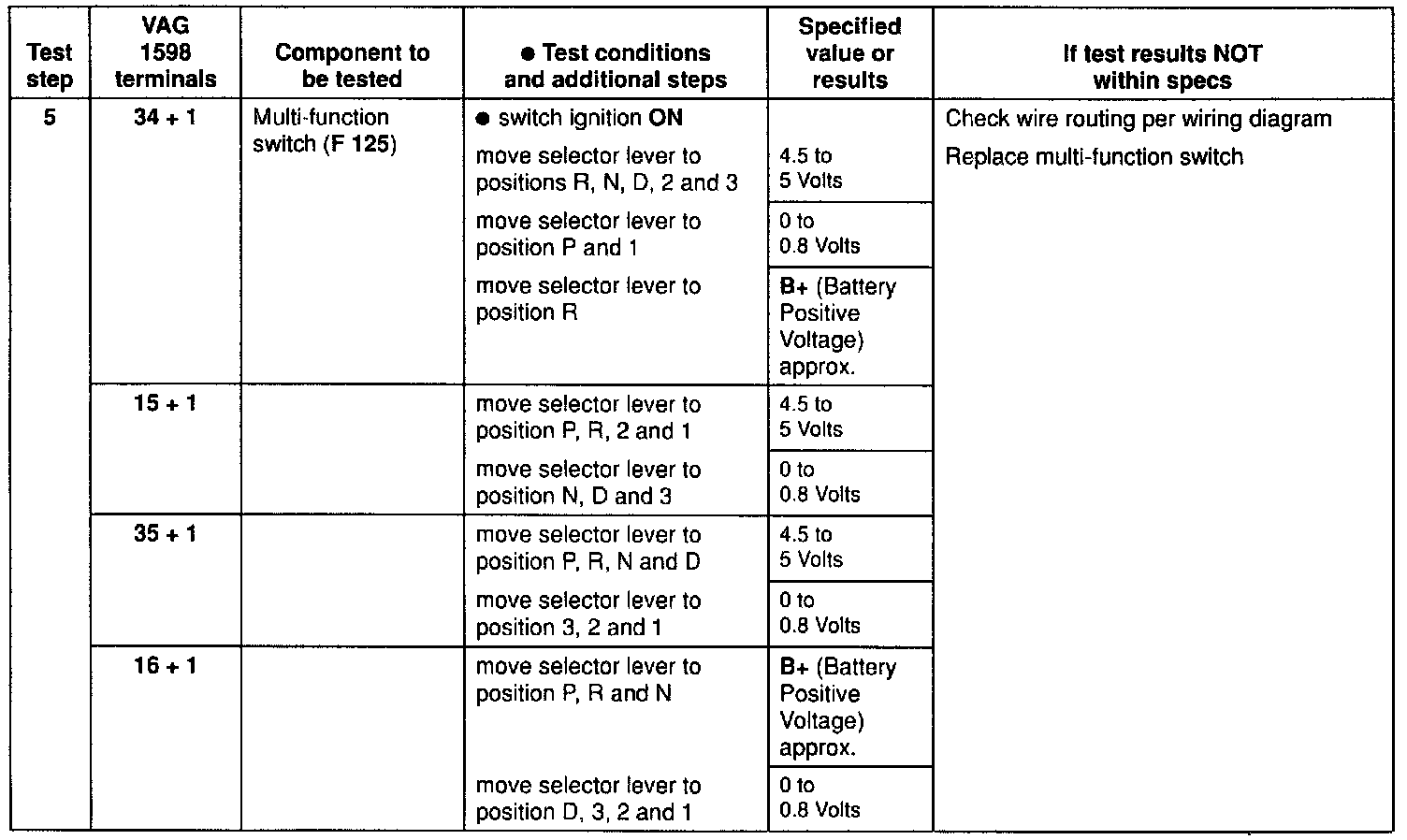

Electrical Test Table:
