Exhaust System - Removing, Installing, Aligning Update: Overview

Group: 26

Number: 94-01

Date: February 15, 1994

Subject:
Exhaust system, removing/installing/aligning

Model(s):
Cabriolet from 1994 m.y.

The following exhaust system information will be added to the Audi 90 Repair Manual, General - Engine, at the next printing.

Exhaust system, removing/installing

Notes:

^ Align exhaust system free of tension.

^ Check exhaust system for leaks.

^ Separating point between center muffler and rear muffler, is indicated by a groove.

^ Always replace all seals and self-locking nuts.

^ Distribute exhaust system load evenly over all attachment points.

^ Tightening torque of bolts for fastening cross beam and the tunnel plate behind the floor, 40 Nm (30 ft lb).

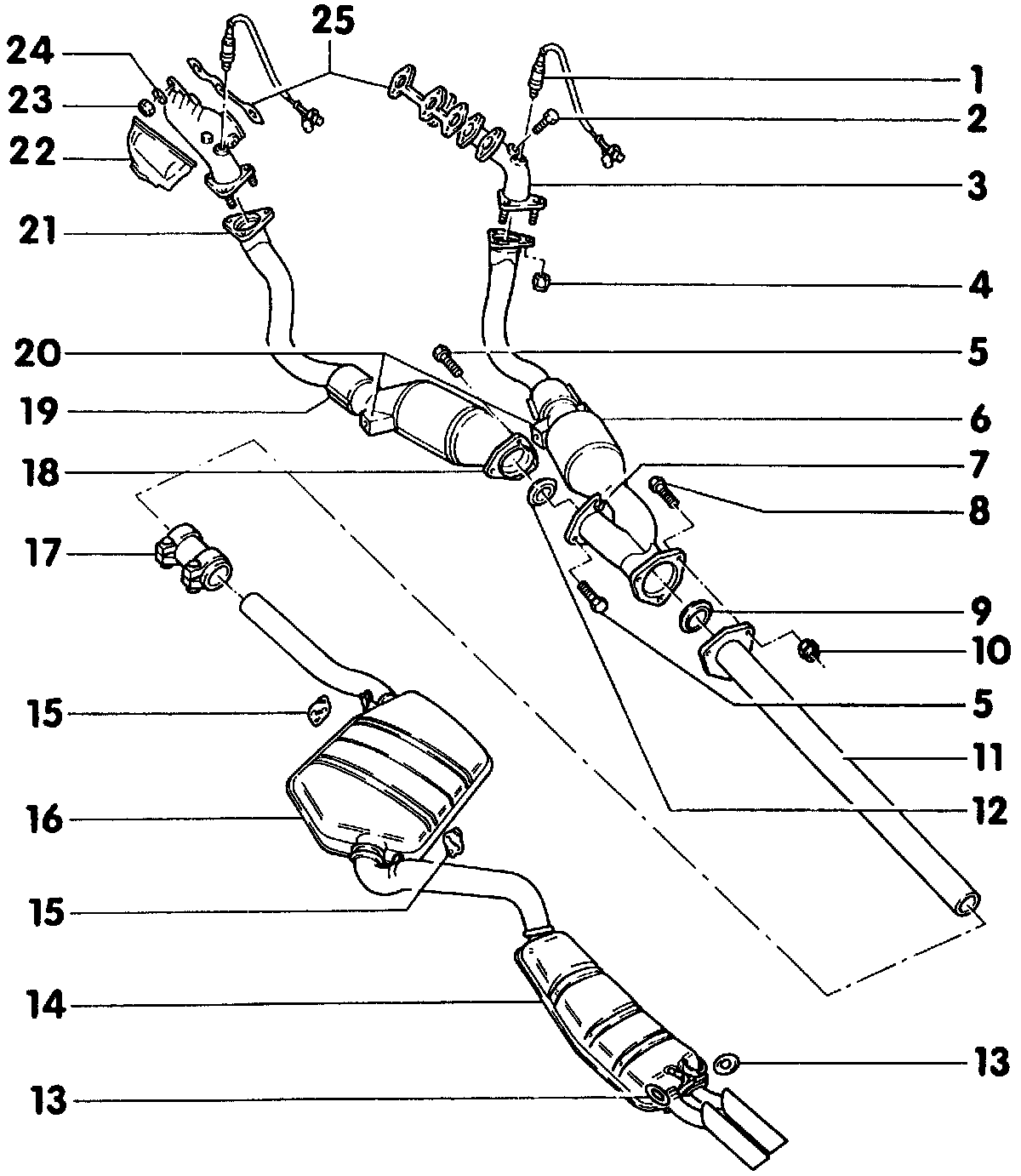

Exhaust System:





1 Heated Oxygen Sensor (HO2S), 50 Nm (37 ft lb)

^ Checking, see Repair Group 24

^ Lubricate threads with G5 but do not get grease into slot area of probe body

2 Bolt, 27 Nm (20 ft lb)

3 Exhaust manifold

^ Tube fitting for EGR, 27 Nm (20 ft lb)

4 Nut, 30 Nm (22 ft lb)

^ Note tightening method, Refer to Exhaust System /Aligning without tension.

5 Bolt, 25 Nm (18 ft lb)

6 Right front exhaust pipe with Three Way9atalytic Converter (TWC)

^ Plug for CO tap tube, 25 Nm (18 ft lb)

7 Nut

^ Upper nut welded tight to flange

8 Bolt

9 Sealing ring

10 Nut, 25 Nm (18 ft lb)

11 Intermediate pipe

12 Sealing ring

13 Holding ring

14 Rear muffler

^ Align end pipes

15 Holding loop

16 Center muffler

Adjust tension of exhaust system

17 Double clamp, 40 Nm (30 ft lb)

^ Tighten uniformly

^ Installation position, is critical

18 Nut

^ Lower nuts are welded tight to flange

19 Front Three Way Catalytic Converter (TWC)

^ Distance between front TWC and transmission must be at least 7 mm (0.28 in.)

20 Bracket for front exhaust pipe with TWC

21 Left front exhaust pipe with Three Way Catalytic Converter (TWC)

^ Aligning, Refer to Exhaust System/Aligning without tension.

22 Heat shield plate

^ Mounting on cylinder head, 9 Nm (80 in.lb)

^ Connection to upper/lower heat shield plate, 5 Nm (44 in. lb)

23 Nut, 25 Nm (18 ft lb)

24 Washer

25 Exhaust manifold gasket

Center And Rear Mufflers:

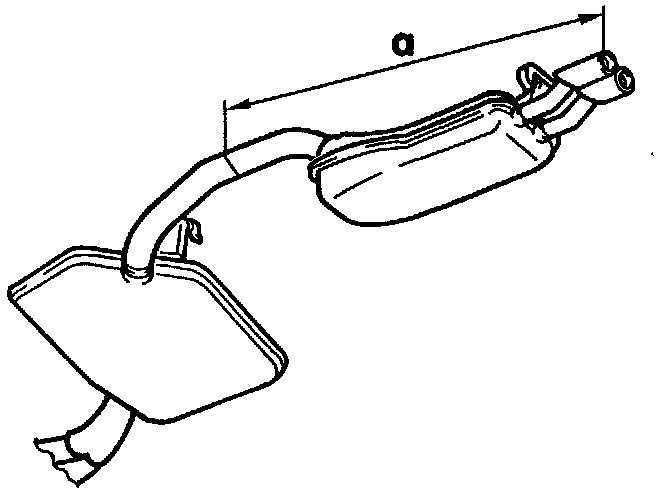

Separating point between center muffler and rear muffler

A separating point is provided for replacing the center muffler and/or rear muffler.

- Separate exhaust pipe between center muffler and rear muffler at point indicated by groove.

^ Dimension -a- = approx. 975 mm (38 3/8 in.)

^ Double clamp to connect center and rear mufflers, 40 Nm (30 ft lb)

- Align rear muffler, Refer to Exhaust System /Aligning without tension.

^ Installation position of double clamp, is critical

Exhaust Bracket:

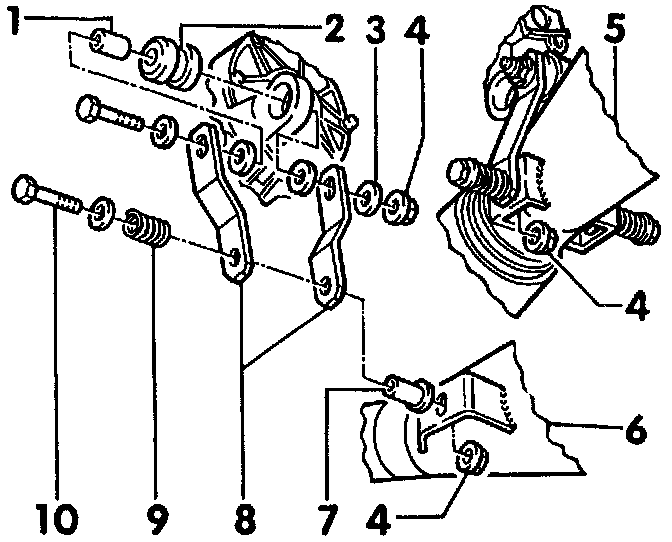

Bracket for front exhaust pipe with Three Way Catalytic Converter (TWC)

1 Spacer

2 Rubber bushing

3 Washer

4 Nut, 25 Nm (18 ft lb)

5 Right front exhaust pipe with TWO

6 Left front exhaust pipe with TWO

7 Spacer

8 Straps

9 Pressure spring

10 Bolt
