Windshield Washer Reservoir: Service and Repair

Removing
- Remove engine coolant reservoir.

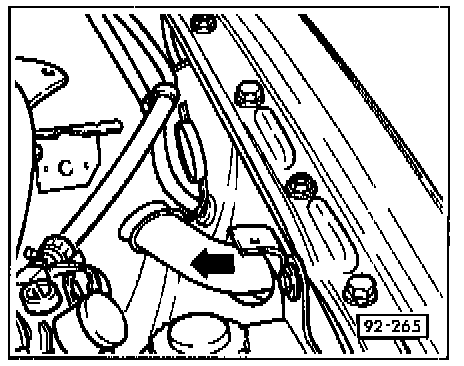

- Twist washer fluid reservoir filler neck rearward (arrow).





- Pull filler neck outward (arrow) and remove from washer fluid reservoir.





- Remove wheelhousing panel.
- Remove suspension strut.
- Disconnect hoses and electrical connectors from windshield washer pump.
- Remove washer fluid reservoir mounting nuts.
- Carefully remove washer fluid reservoir from wheelhousing.

Installing
- Install in reverse order of removal, noting the following:
Washer fluid reservoir nut tightening torque: 5 Nm (44 in. lb)
