Cellular Telephone - Installation Instructions

Group: 91

Number: 00-01

Date: Mar.24, 2000

Subject: Cellular Telephone, Installation Instructions

Model(s): TT Roadster

2001

Service





The illustrated pages contain cellular telephone installation instructions for the model listed.

Seat, removing

WARNING! Observe safety regulations when performing work on airbags (see Repair Group 69 of appropriate Repair Manual).

- Disconnect battery ground strap.

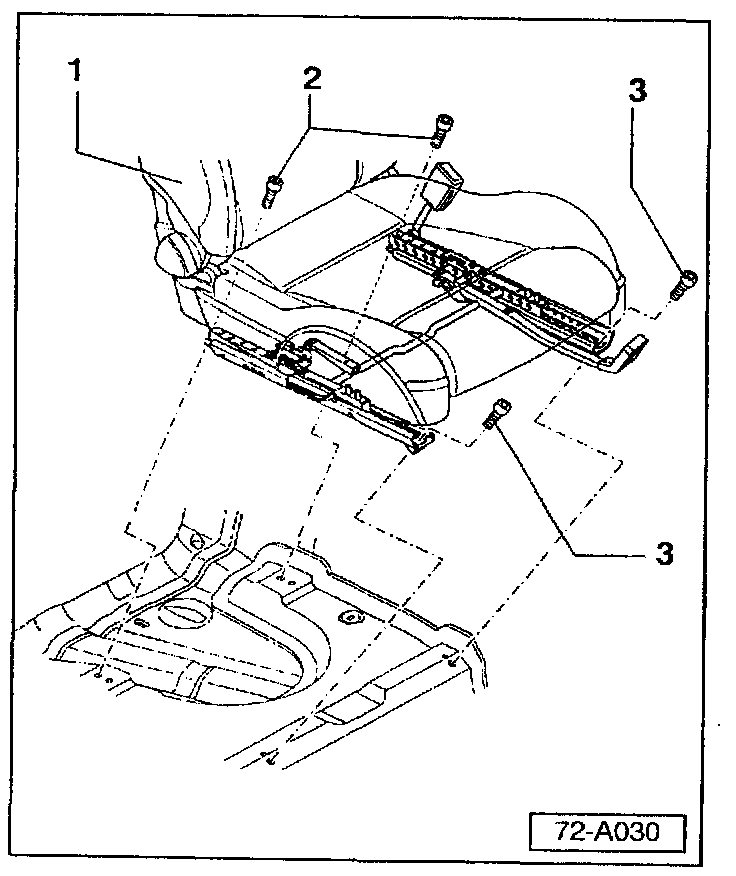

Remove front passenger seat -1 - as follows:

- Move seat all the way forward.

- Remove bolts -2- (tightening torque 30 Nm).

- Move seat all the way back.





- Remove plastic trim -1- and -2- from seal rails.

- Remove bolts -3- see illustration 72-A030 (tightening torque 30 Nm).

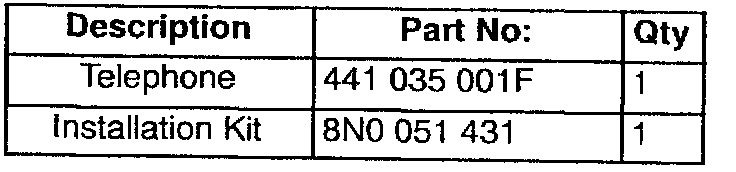

CAUTION! Part numbers are for reference only. Always check with your Parts Dept for the latest parts information.

WARNING! Technician must discharge him/herself electrostatically (Briefly touch door striker or vehicle body.)

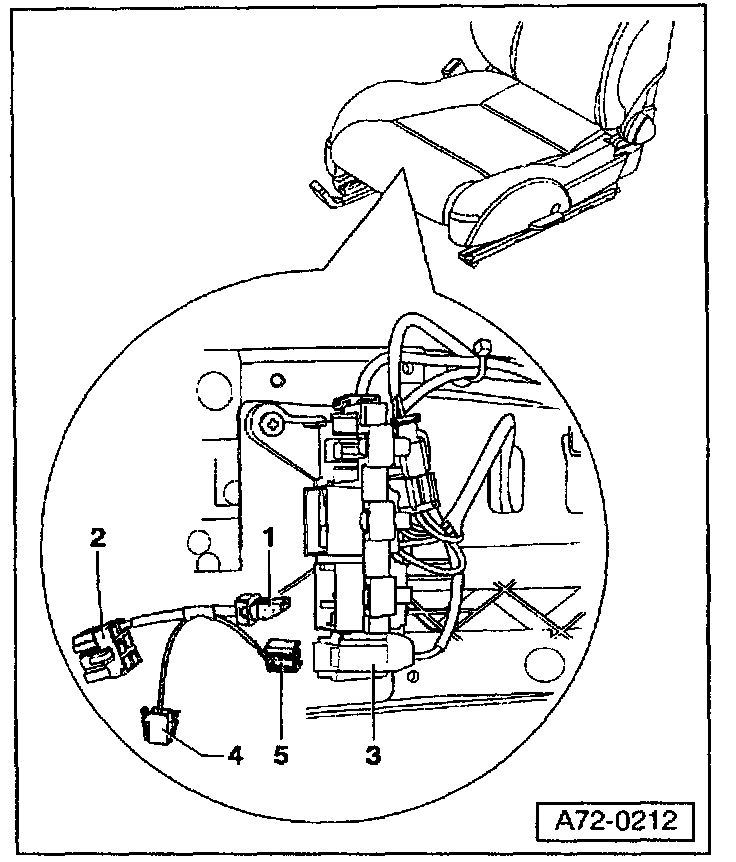

- Tip seat backwards and disconnect electrical connectors.





- Connect igniter wire -3- from airbag module to connector -5- (airbag adapter) VAS 5094.

- Remove seat from vehicle.

WARNING! Airbag adapter VAS5094 must remain connected on seat until seat has been re-installed.

Handset cradle, installing

- Remove small close out covers from center console on passenger side to expose handset mounting bracket fastening points.





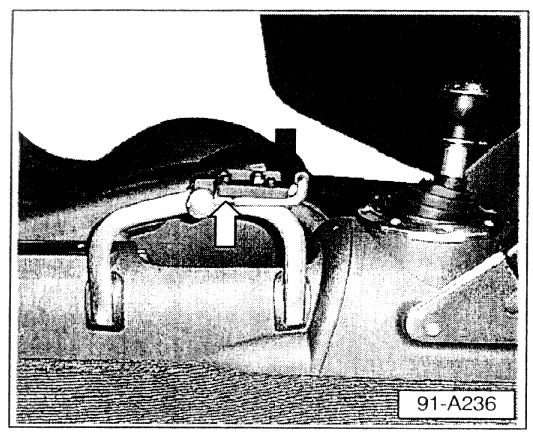

- Install rubber isolators -arrows- into openings of the center console.

- Install hang-up cup to handset bracket using two slotted machine screws through bottom rear of handset bracket -white arrow- and one phi lips head machine screw through top front of hang-up cup -black arrow-.





- Install handset bracket to console using supplied screws.





- Install handset into hang-up cup and plug handset harness into connector -arrow- in the center console.

- Reinstall seat in reverse order of removal.

Transceiver, installing

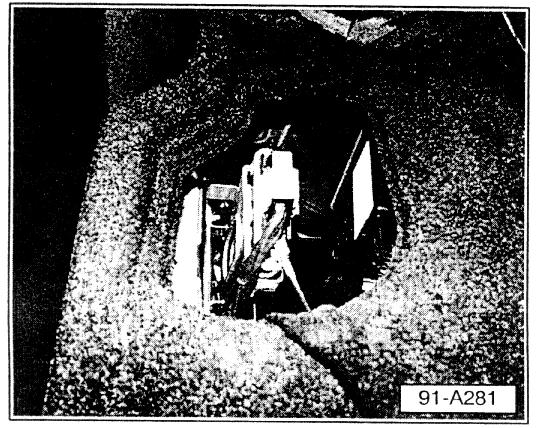

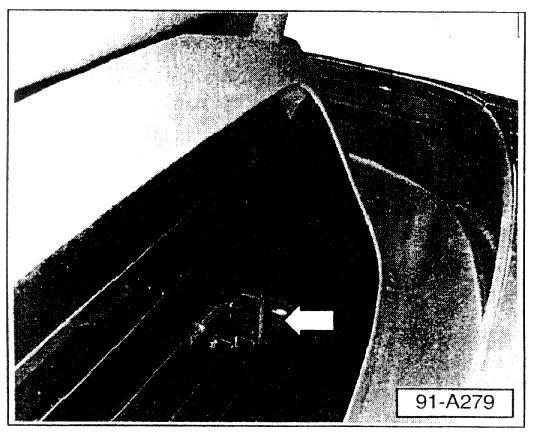

- Locate transceiver bracket compartment -arrow- (behind right side roll bar).

- Remove compartment cover as shown.





- Cut tie-wrap holding transceiver and coaxial cable -arrows-.

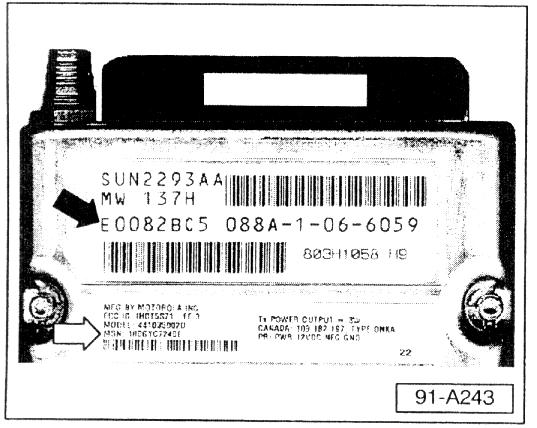

- Prior to installing transceiver, write down Electronic Serial Number (ESN) -black arrow- and Mechanical Serial Number (MSN) -white arrow-. These numbers are needed to register and activate phone.

- Install transceiver into bracket.





- Connect coaxial cable and wire harness to transceiver as shown. Orient and fasten as necessary to prevent rattles.

- Reinstall compartment cover.

- Install antenna mast onto factory installed antenna base on left rear fender.

WARNING! Ensure that there is no person inside the vehicle when reconnecting battery ground strap.

- Reconnect battery ground (GND) strap.

- Connect VAG 1551 or VAS 5051 scan tool.

- After connecting battery, check vehicle equipment (radio code, clock, electric windows) as per Repair Manual and/or Owner's Manual.

- Check and erase any stored DTC's.

- Program radio station presets.

Transceiver, registering

The Electronic Serial Number (ESN) and Mechanical Serial Number (MSN) of new transceivers (printed on bar-code label on transceiver) must be registered with a Cellular Service Provider (carrier) before the telephone can be activated.

CAUTION! DO NOT attempt to place a call before programming the telephone or be fore the Cellular Telephone Company has activated the phone number.

See programming instructions and operators manual (supplied with installation kit).

Contact the preferred Cellular Service Provider (carrier).

- Program telephone using information provided by both customer and Cellular Telephone Company.

- Place telephone programming instructions and operators manual inside the portfolio (with the Owners Manual located in glove box).
