Cruise Control Servo Cable: Adjustments

Actuator Linkage, Adjusting

4-cylinder engines







Depending on the engine, only the installation position of the linkage varies in the different 4- cylinder engines.

Follow the sequence of operations below:
- Start engine and allow to idle (throttle valve at idle).
- Screw in linkage -2- up to stop and then turn back one turn (360° ± 90°).

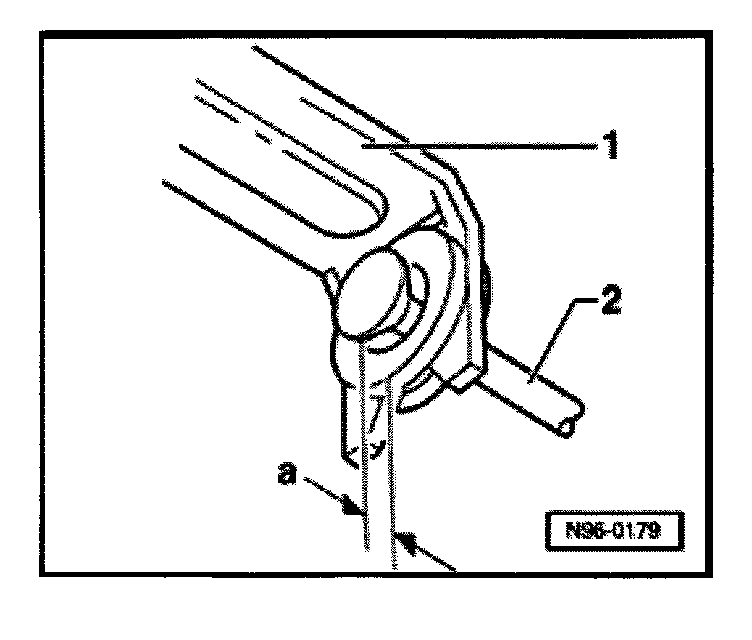

The play -a- between linkage -2- and actuator -1- must be 0.5-1.0 mm.
- Secure linkage from moving (locknut).
