Cruise Control Servo: Service and Repair

Actuator, Removing And Installing

Depending on the engine, the installation position of the individual actuators can vary.

Follow the sequence of operations below:
- Remove vacuum line.
- Unscrew or unclip linkage.

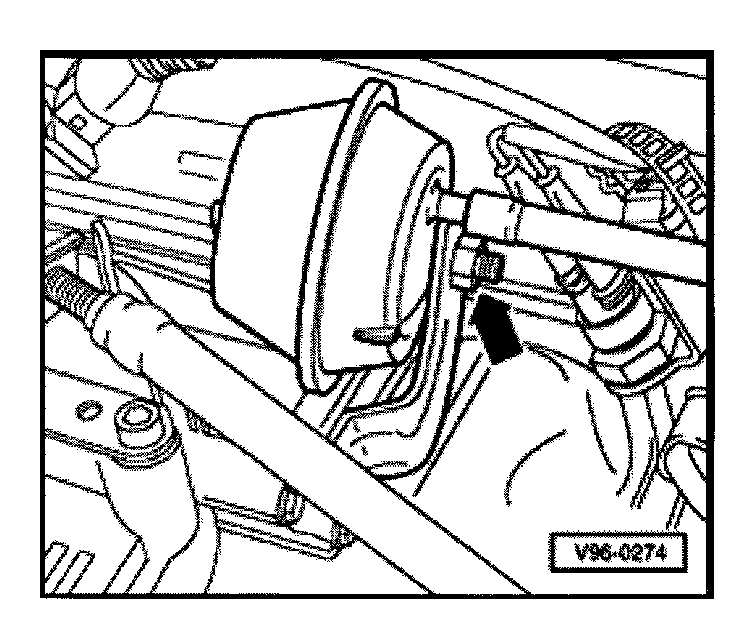

- Disconnect actuator from bracket (arrow).
Tightening torque: 25 Nm (18 ft lb)
