Cabin Air Filter / Purifier: Service and Repair

Dust and Pollen Filter, Removing and Installing
Remove right air plenum cover

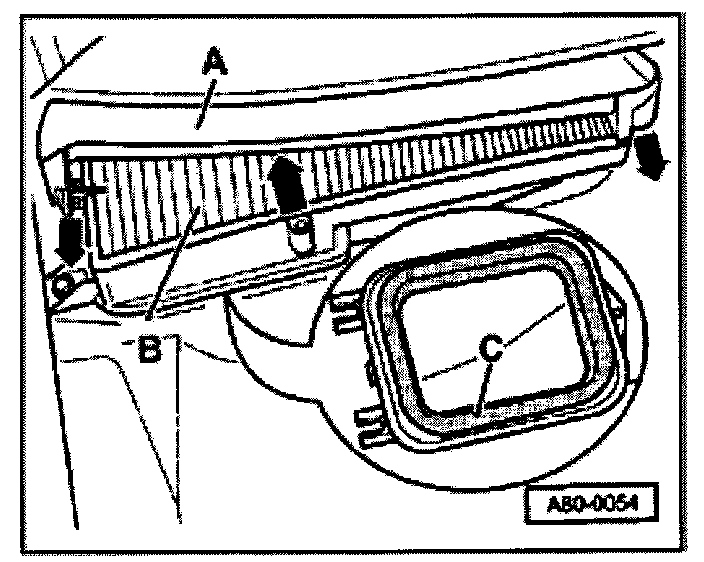

- Remove water guide -A-.
- Remove dust and pollen filter -B- from housing.


NOTE:
- The water guide and the plenum cover must be properly installed to ensure no water flows onto the dust and pollen filter and into the heater housing.
- Gasket -C- must be attached to the housing of the dust and pollen filter; before installing the housing, check that it is correctly located and not damaged.
- The dust and pollen filter should be replaced at regular intervals.
