Heater Core: Service and Repair

Heater Core, Removing and Installing







- Remove heater/air conditioner assembly. See Heater core case service and repair, Heater/Air conditioner, Servicing Service and Repair. Also see Housing Assembly HVAC service and repair, Heater/Air conditioner, remove and install Heater/Air Conditioner Assembly, Remove and Install

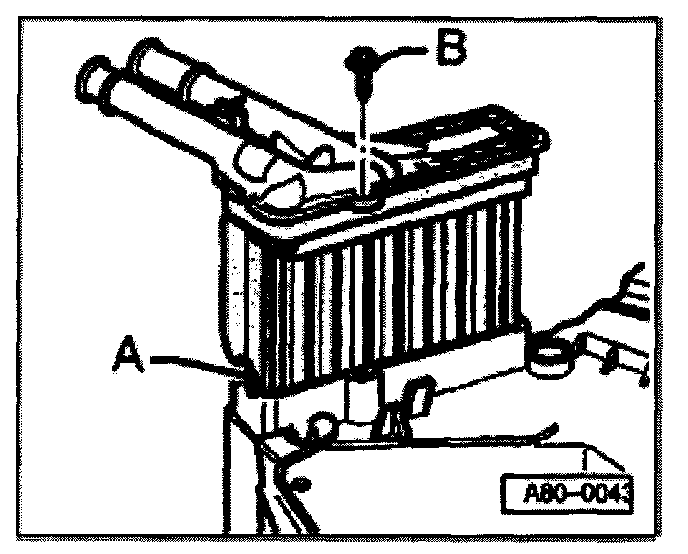

- Press catches -A- and pull heater core from housing.


NOTE:
- If the replacement heater core does not engage in the heater housing when installing, attach with 2, 3.2x20 mm screws -B-.
- Apply self adhesive seal to heater core.
