Odometer: Service and Repair
Adaptation (Scan Tool Function 10)
Individual functions are called up by entering the appropriate adaptation channel numbers (listed in the adaptation table).
NOTE:
- Using measuring value blocks 10, 11, 12 and 15, the values that need to be transferred to the new instrument cluster can be read out before replacement.
- Adaptation channels 42, 43, and 44 (See measuring value blocks 013 and 014) must be adapted according to the oil quality (measuring value block 15).
- Adaptation channels 60, 61, and 62 are only needed when the instrument cluster communicates with the corresponding BUS system..
- Measuring value blocks 125 and 126 indicate the components that are part of the powertrain data-BUS.
- Measuring value block 130 indicates the components that are part of the comfort system data-BUS.
- Measuring value block 140 indicates the components that are part of the information data-BUS.
Adaptation table :
Adaptation channel Adaptation function
02 Resetting SRI after service
03 Adaptation of fuel gauge
04 Language version of driver information display
09 Odometer
18 Adaptation of auxiliary heater
30 Adaptation of fuel gauge sender resistance range
35 Adaptation of engine speed threshold
40 Adaptation for distance driven since service
41 Adaptation for time since service
42 Adaptation for minimum mileage performance
43 Adaptation for maximum mileage performance
44 Adaptation for maximum time interval
45 Adaptation for oil quality
46 Adaptation for total consumption quantity (only gasoline engines)
60 Adaptation powertrain data-BUS
61 Adaptation comfort system data-BUS
62 Adaptation information data-BUS
Initiating "Adaptation" function 10
Indicated on display
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0-. This selects "Adaptation", function 10.
- Press -Q- button to confirm input.
Indicated on display
Rapid data transfer Q
10-Adaptation
- Press -Q- button to confirm input.
Indicated on display:
Adaptation
Input channel number XX
- Enter desired adaptation channel (adaptation table).
- Press -Q- button to confirm input.
NOTE: After changing an adaptation value or ending an adaptation channel, "Adaptation " function 10 must be performed again before selecting another adaptation channel.
Odometer display
This function is used to adapt the odometer after the instrument cluster is replaced.
NOTE:
- The adaptation is only possible for an instrument cluster with a maximum mileage of 100 miles.
- Adaptation can only be performed once for each instrument cluster.
- Only larger adaptation values can be entered (more than 100 miles).
- If an incorrect value is entered and confirmed, it cannot be changed. If this happens, the instrument cluster must be replaced.
- In countries where speedometers are calibrated in miles, adaptation can be performed in miles.
- Observe notes when replacing instrument cluster.
Indicated on display:
Rapid data transfer HELP
Select function XX
- Press buttons -1- and 1-. This selects "Login Procedure" function 11.
Indicated on display:
Rapid data transfer Q
11-login procedure
- Press -Q- button to confirm input.
Indicated on display:
Login procedure
Input code number XXXXX
- Input code number 13861.
Indicated on display:
Login-Procedure Q
Input code number 13861
- Press -Q- button to confirm input.
Indicated on display:
Rapid data transfer HELP
Select function XX
- Press buttons -1- and -0-.
Indicated on display:
Rapid data transfer Q
10 - Adaptation
- Press -Q- button to confirm input.
Indicated on display:
Adaptation
Input channel number XX
- Press buttons -0- and -9-.
- Press -Q- button to confirm input.
Indicated on display:
Channel 9 Adaptation 0 ->
Mileage in 10 miles < -13- >
NOTE: For the VAG1551 scan tool values can only be input via direct input.
- Press the -> button to continue program sequence.
Indicated on display:
Channel 9 Adaptation 0 Q
Input Adaptation value XXXXX

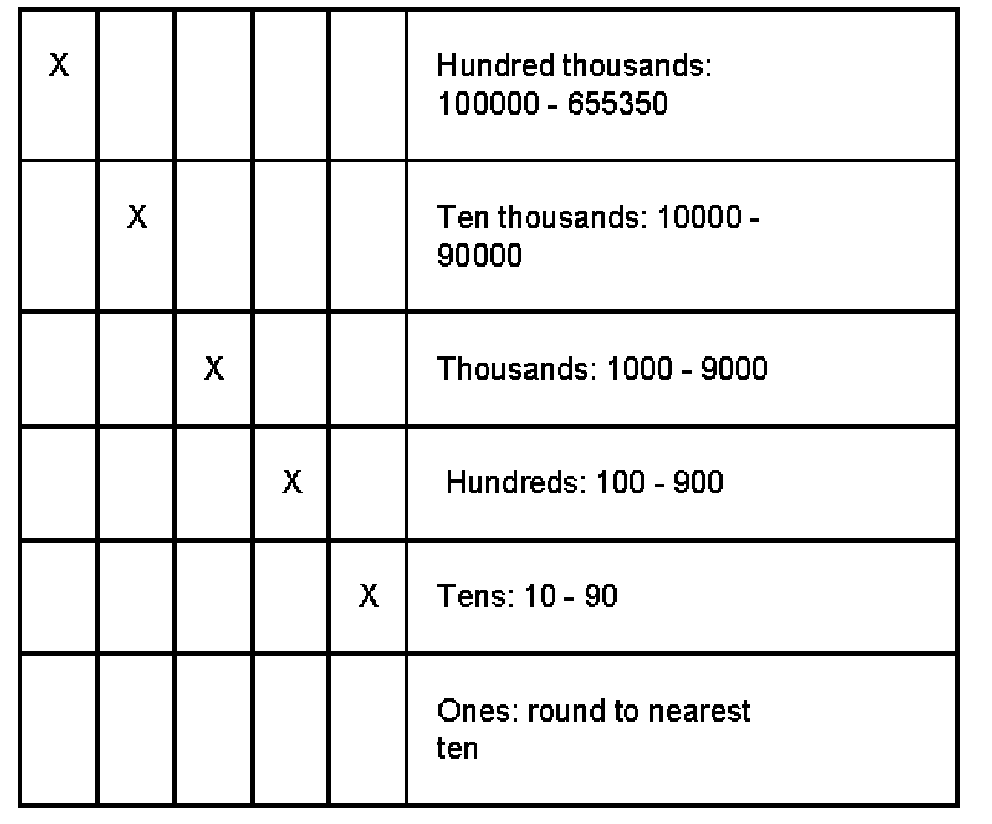

- Input adaptation value (measuring value block 10) via the keypad.
Example :
Mileage = 89627
0 8 9 6 3
Indicated on display:
Channel 9 Adaptation 0 Q
Input Adaptation value 08963
- Press -Q- button to confirm input.
Indicated on display:
Channel 9 Adaptation 8963 Q
Mileage in 10 miles < -13- >
- Press -Q- button to confirm input.
Indicated on display:
Channel 9 Adaptation 8963 Q
Store changed value?
- Press -Q- button to confirm input.
Indicated on display:
Channel 9 Adaptation 8963 ->
Changed value is stored
- End adaptation of odometer by pressing the -> button.
