License Plate Lamp: Service and Repair

License Plate Light, Removing And Installing

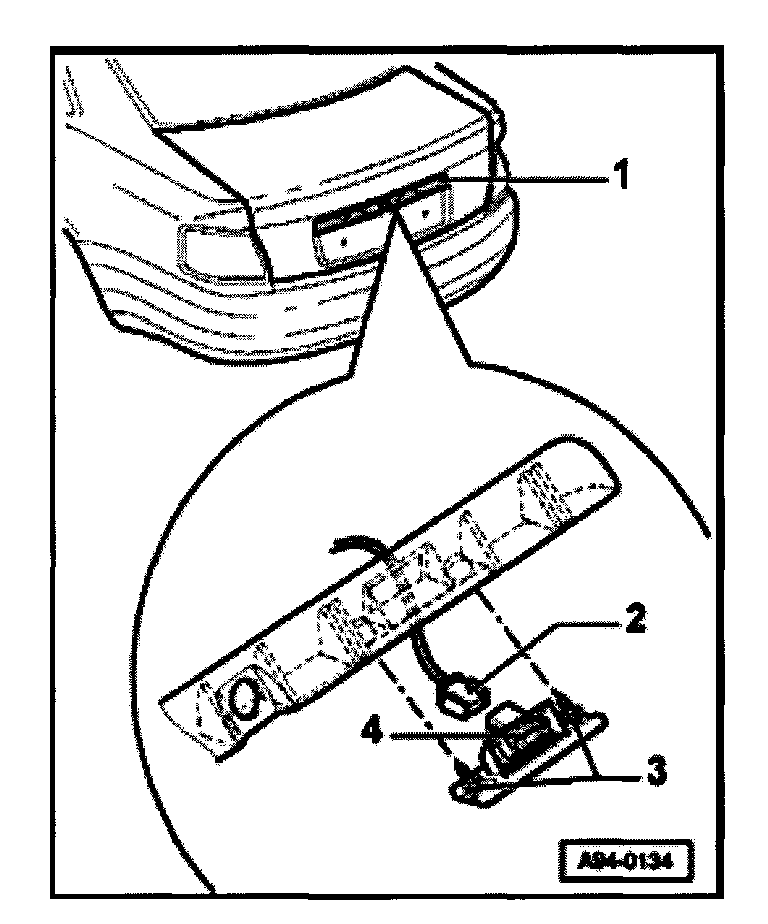

NOTE: Only the right license plate light is illustrated.


Removing







- Remove Phillips-head screws -3- (2x) from trunk lid -1-.
- Pry bulb carrier from trunk lid and disconnect harness connector -2-.
- Remove bulb -4- (12 V, 5 W) from light socket.

Installing

- Install in reverse order of removal.
