Windshield Washer Hose: Locations

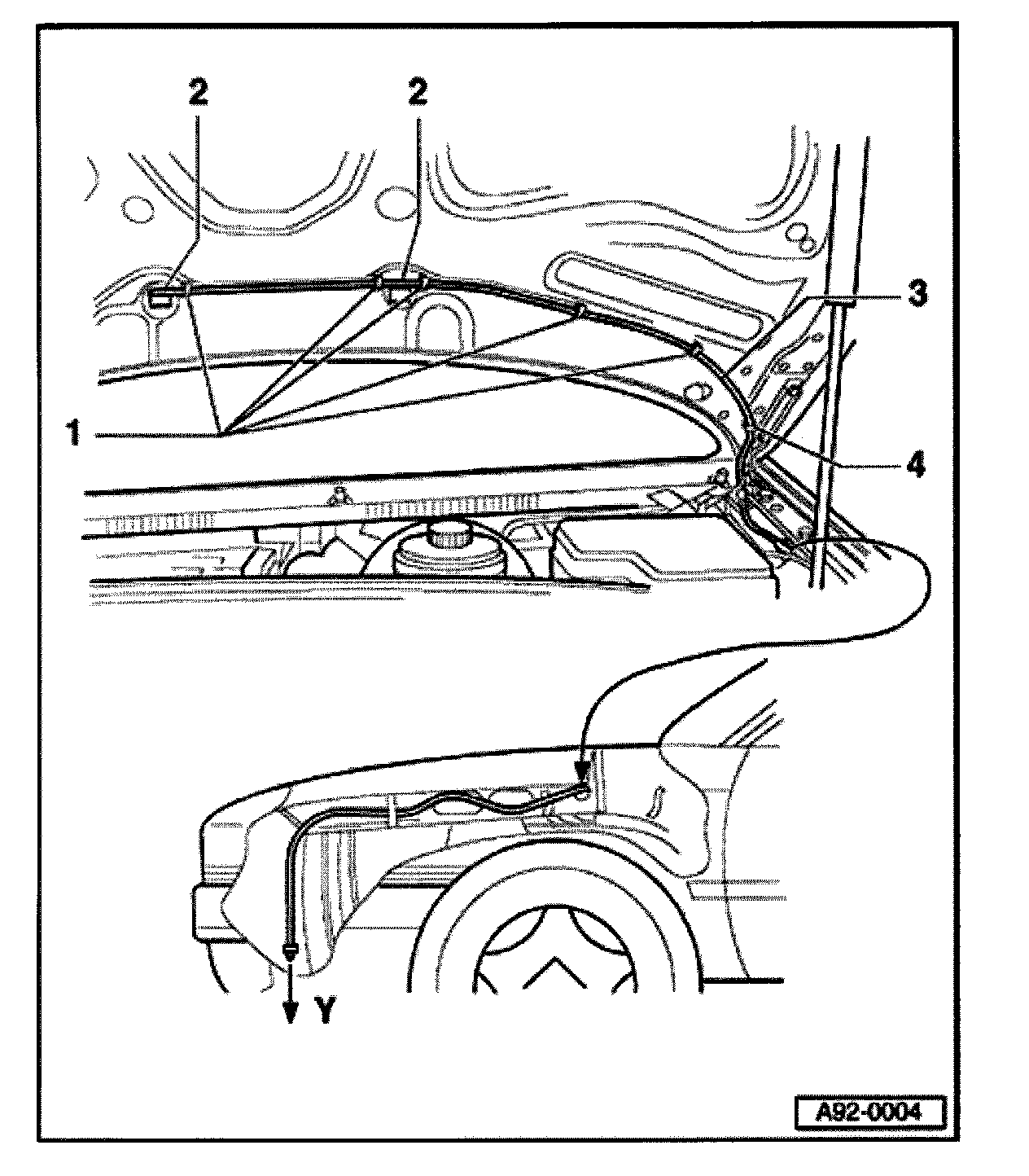

Windshield Washer Hoses, Routing/attachment







1 - Hose clips 5x
2 - Nozzles 2x
3 - Hose
4 - Hose clip
Y - Connection to windshield washer pump
