Wiper Blade: Service and Repair

NOTE:
Possible causes of wiper blade chatter:
- Scratched windshield
- Rubber part of wiper blade is out of the frame or torn
- Windshield wiper arms/blades are loose or bent
- Wiper blades are waxy or buckled


If none of these causes apply to the problem, then the angle of the wiper arms to the windshield must be checked and if necessary adjusted before replacing the wiper blades.

Special Tools Test Equipment And Auxiliary Items

3358 Windshield wiper adjuster







Checking Wiper Arm Angle
- Bring wiper arms into park position.
- Remove wiper blade.







- Insert wiper arm -2- into 3358 windshield wiper adjuster and lock in place with stop screw -3-.
- Compare displayed angle with specified value.

Specified Values For Angle Of Wiper Arm To Windshield
Driver's side -3°
Passenger side -3°
Tolerance ±0°

Adjusting Wiper Arms
- Bring wiper arms into park position.
- Remove wiper blade.







- Place wiper arm -2- in 3358 windshield wiper adjuster and lock in place with stop screw -3-.

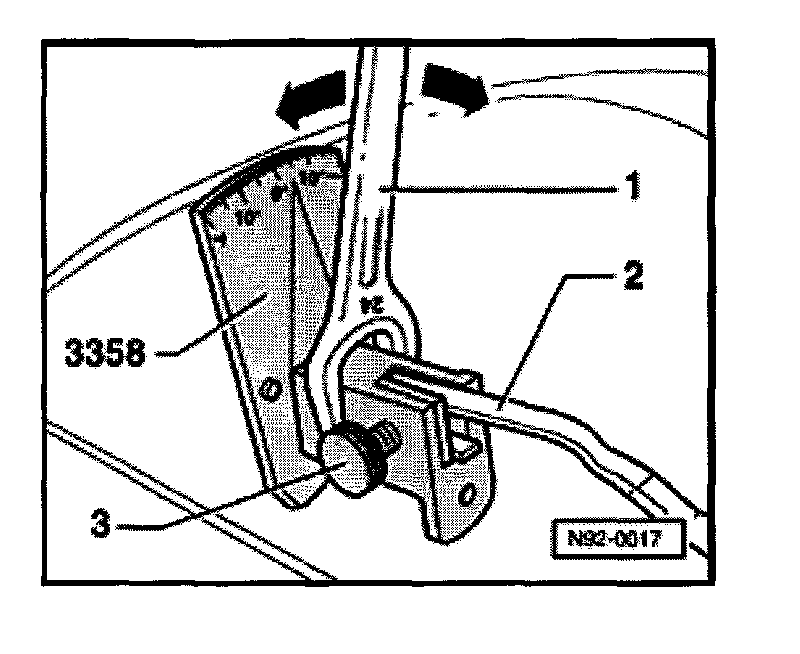

- Place 24 mm open end wrench -1- onto adjusting device as shown and set wiper arm -2- to specified value (arrow).
Specified values.
- Loosen stop screw -3- and remove wiper arm -2- from adjusting device.
- Again place wiper arm -2- into 3358 windshield wiper adjuster and again lock in place with stop screw -3-.
- Compare displayed angle with specified value.
Specified values.
- If necessary, repeat setting and checking procedure until specified value is attained.
- Remove adjusting device and install wiper blade.
