Components For Telematic and Voice Control System

Components for Telematic and Voice Control System, Sedan and Wagon







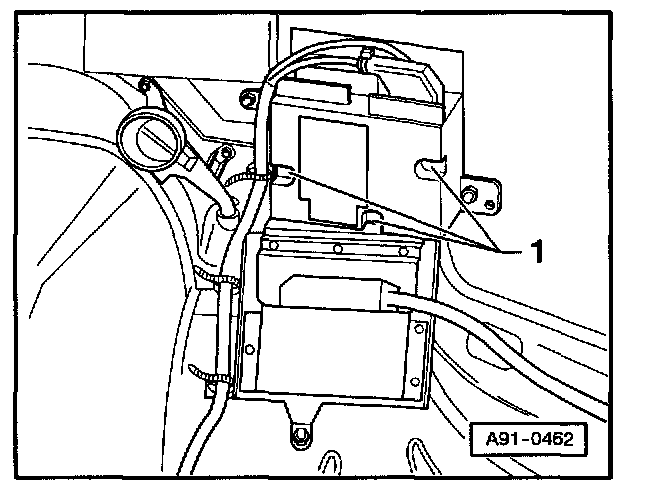

1. Telephone / Telematic Control Module, J526







- in footwell passenger side (Pos. 1)

2. Speech Input Control Module, J507







- behind glove compartment

3. Electronic Trip Odometer (Chip Card Reader)







- in shelf box the shelf driver side (Pos. 3)

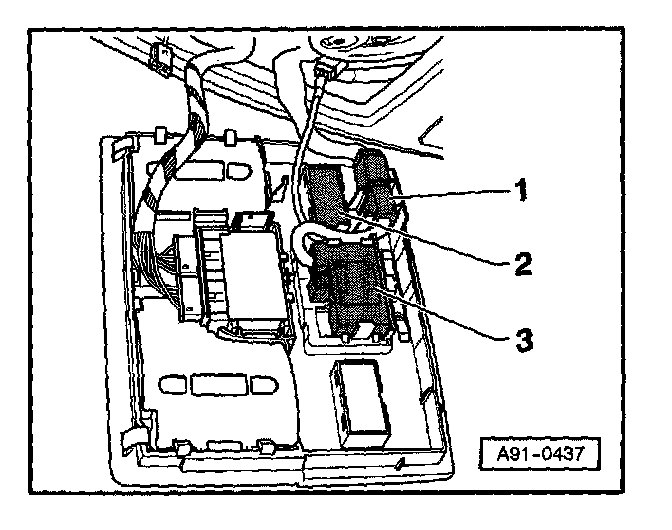

4. Emergency Call Button, E276 and Roadside Assistance Button, E275







- in roof front (Pos. 3)

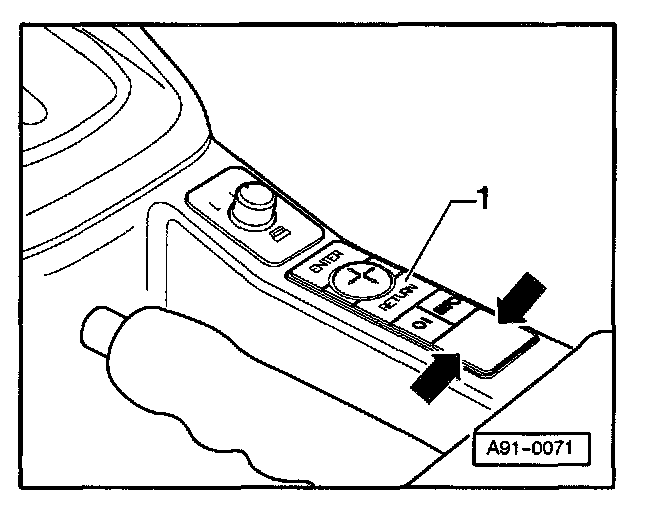

5. Function Selector Switch II, E272







- in console, center (Pos. 1)

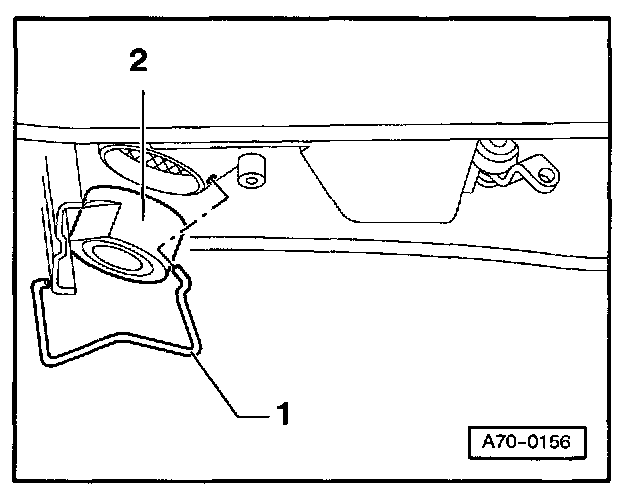

6. Auxiliary speaker (Telematic), R91







- in B-pillar trim passenger side (Pos. 2)

7. Telephone Handset, R37







- in center arm rest

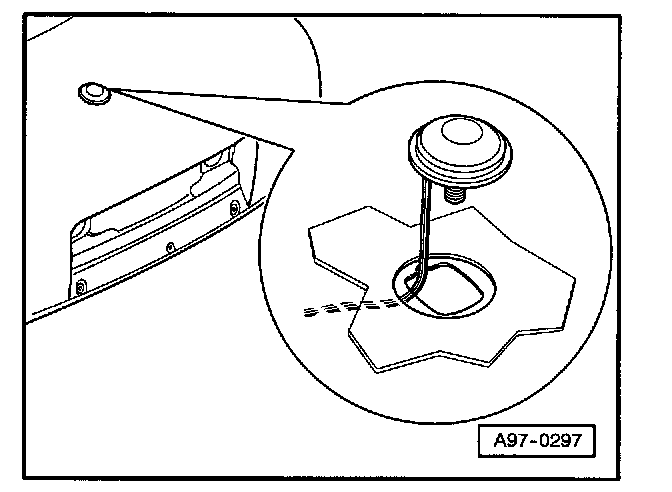

8. Antenna for Navigation System (GPS), R50







- Sedan:
on luggage compartment hood (on rear lid)







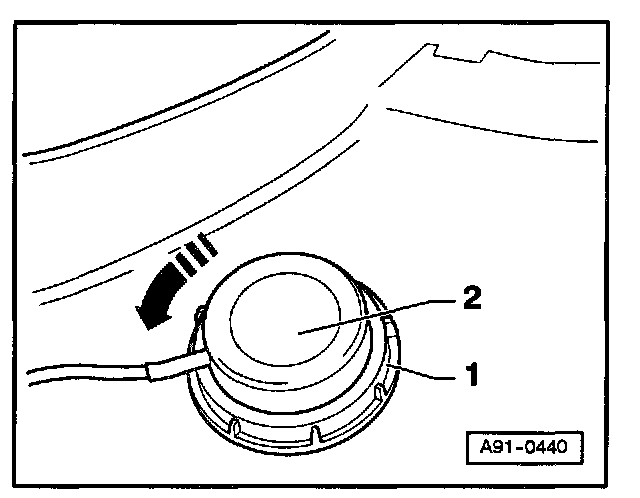

- Wagon:
on roof (Pos. 2)

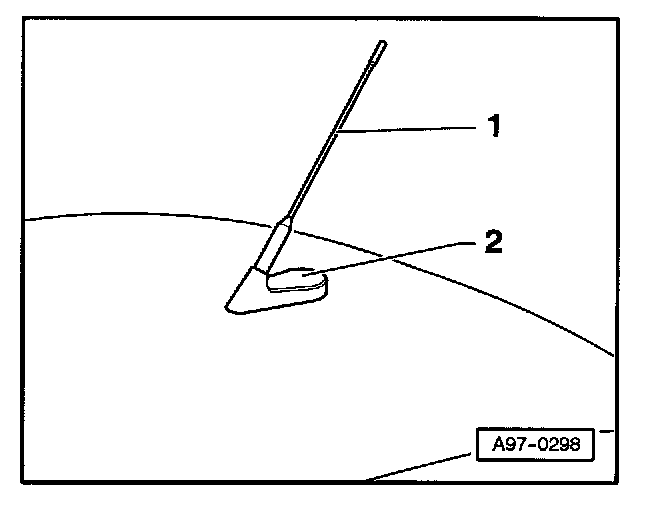

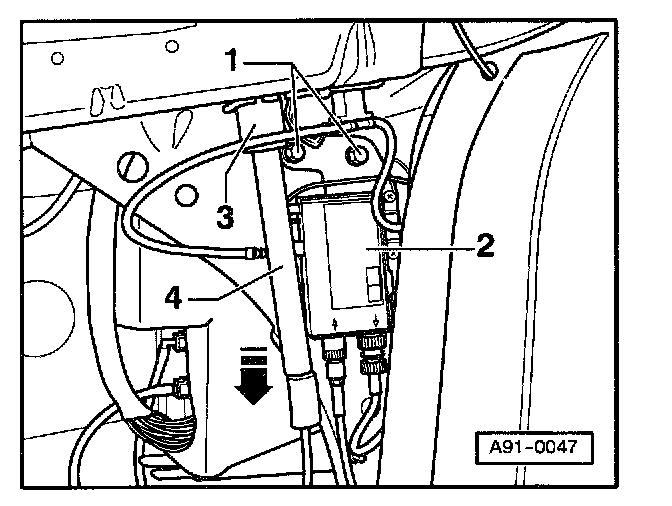

9. Rod Antenna for Telephone







- Sedan:
in fender behind left (Pos. 4)







- Wagon:
on roof (Pos. 1)

10. Auxiliary Antenna (Telematic), R90







- in rear bumper

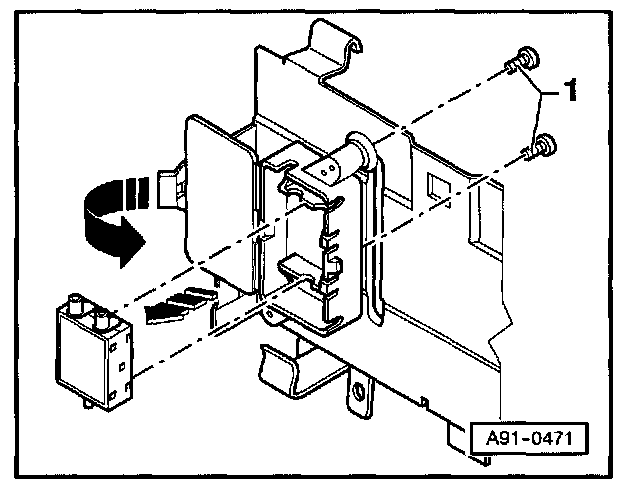

11. Antenna Splitter, R87







- Sedan:
in luggage compartment, storage compartment, left







- Wagon:
on back built-in frame

12. Speaker (Telephone / Navigation)







- in B-pillar trim on driver side (Pos. 1)

13. Mid-Bass speaker







- in front door, lower (Pos. 2)

14. Treble Speaker







- in front door; upper (Pos. 2)

15. Control module for multi-function steering wheel, J453







- in Relay panel behind shelf driver's side (Pos. 1)

16. not used
