P0560

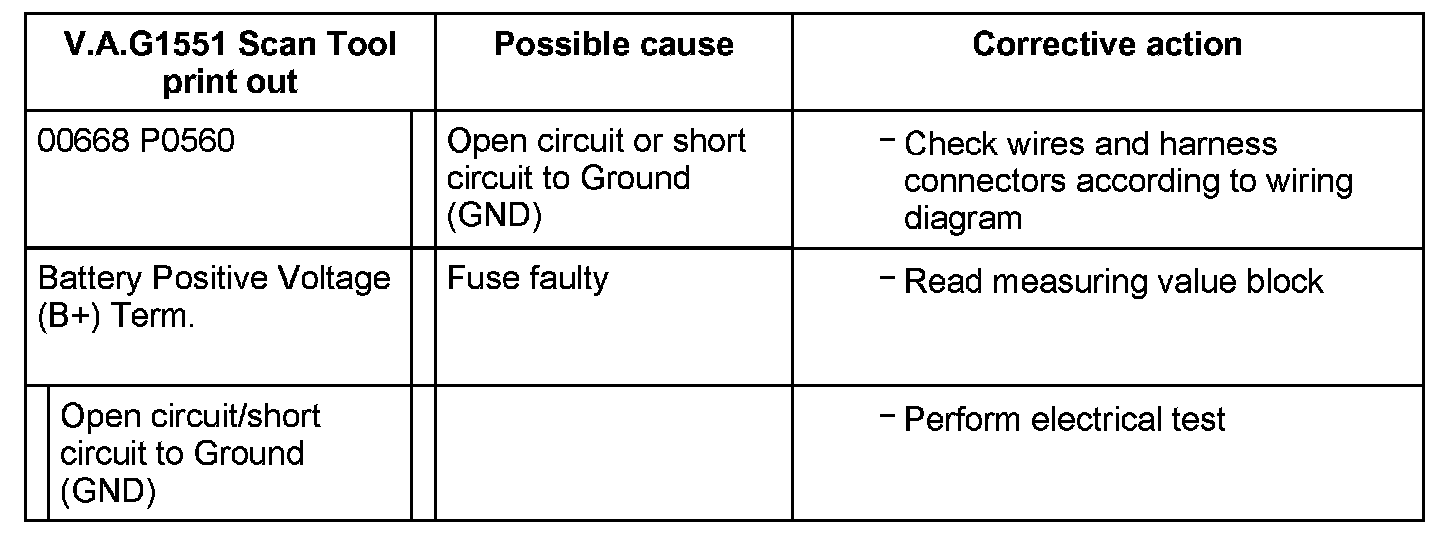

Diagnostic Trouble Codes 00668 / P0560 - 5 Spd. Automatic Transmission 01V





1) Pay attention to which hydraulic control the transmission has when selecting measuring value block.

Note for DTC 00668 / P0560:

^ When vehicle voltage (terminal 30) fails, application values are lost, i.e. Transmission Control Module (TCM) must learn these values again when vehicle is started. During this renewed "learning", shifting quality may be worse than normal.
^ This malfunction will only be registered by OBD if it occurs 5 times consecutively after the ignition is switched off and on.
