P1741

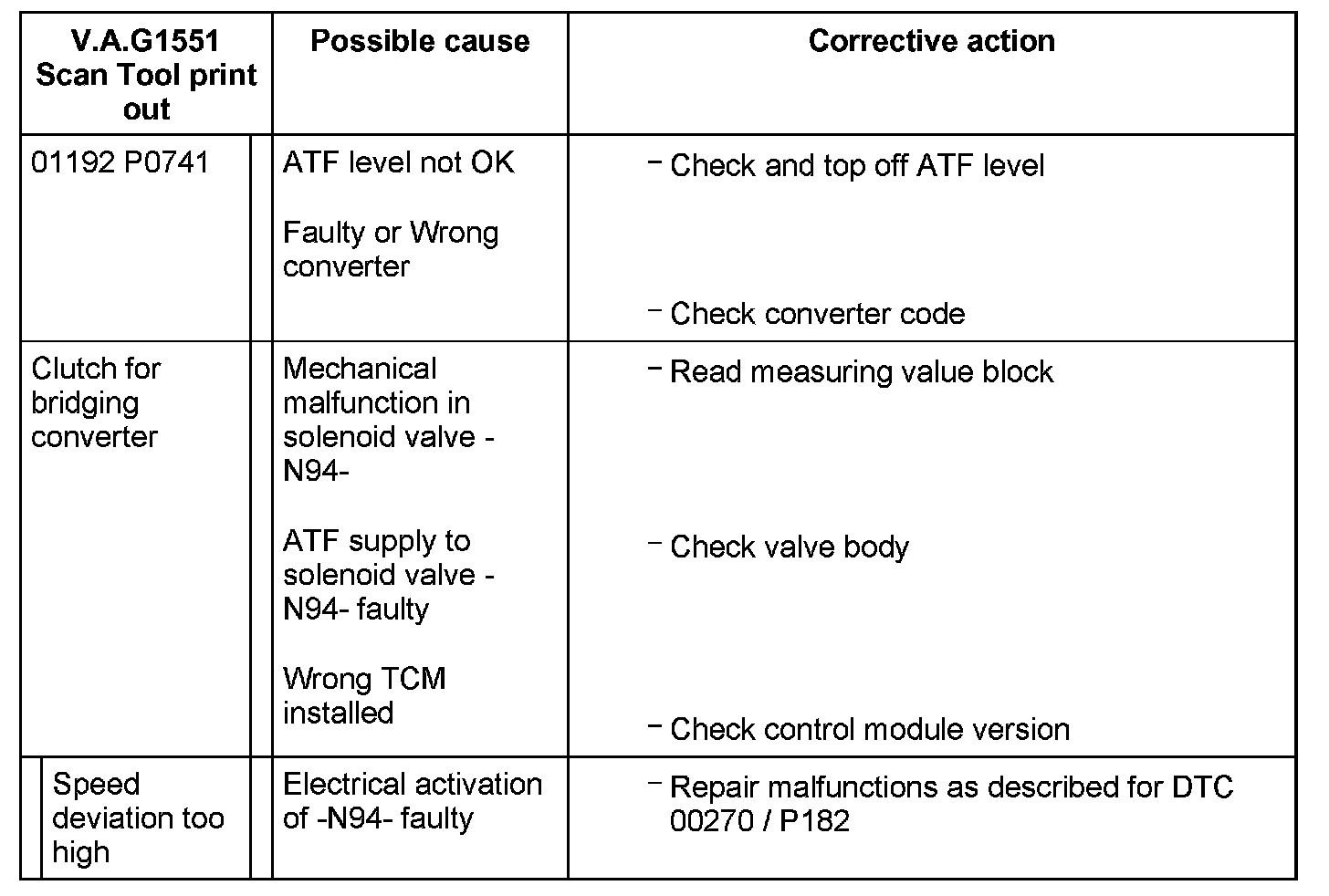

Diagnostic Trouble Codes 01192 / P0741 - 5 Spd. Automatic Transmission 01V





1) Pay attention to which hydraulic control the transmission has when selecting measuring value block.

Note for malfunction recognition for DTC 01192 / P0741:

^ The ratio of transmission speed and transmission input speed to engine speed (RPM) with the torque converter lock-up clutch closed (applied) is implausible.
