Cruise Control Servo Cable: Adjustments

Actuator Linkage, Adjusting

6-cylinder engines







The adjustment is the same as on the 4-cylinder engine.

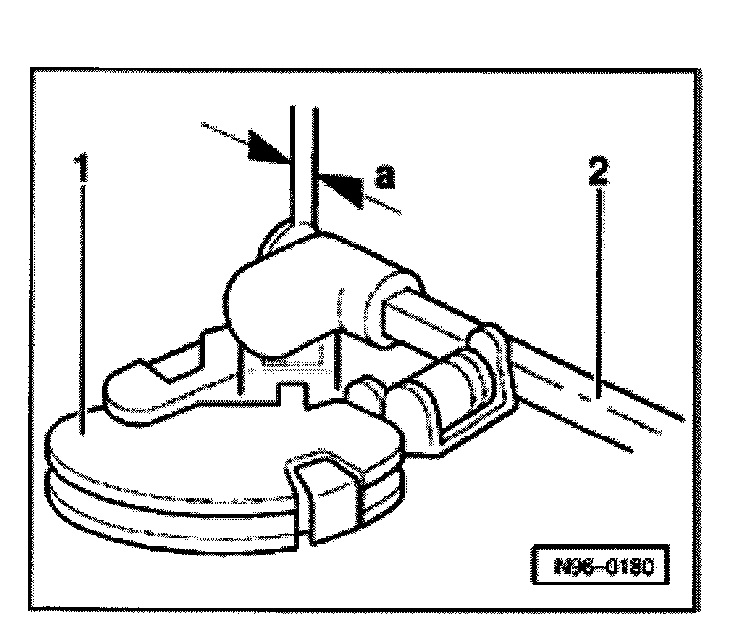

The play -a- between linkage -2- and the stop plate on cam plate -1- must be 0.5-1.0 mm.
- Secure linkage from moving (locknut).
