Automatic Transmission/Transaxle

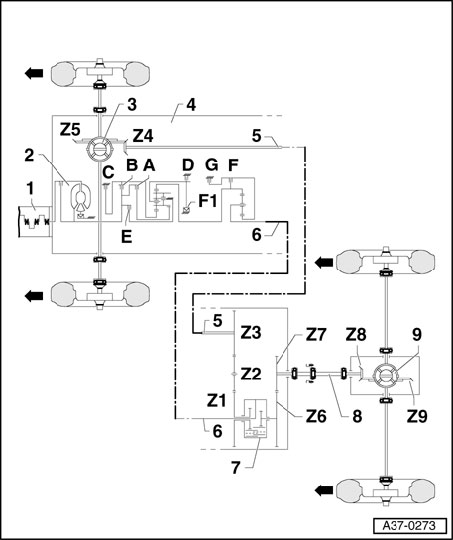

Transmission diagram (All Wheel Drive (AWD) vehicles) - 5 Spd. Automatic Transmission 01V





A - Clutch A
B - Clutch B
E - Clutch E
F - Clutch F
C - Brake C
D - Brake D
G - Brake G

F1 - Freewheel 1

1 - Engine
2 - Torque converter with lock-up clutch
3 - Front differential
4 - Automatic transmission
5 - Drive pinion
6 - Output shaft
7 - Torsen differential
8 - Driveshaft
9 - Rear differential

Z1, Z2 and Z3 = spur gears of front intermediate drive
Z4, Z5 = front gear set
Z6, Z7 = spur gears of rear intermediate drive
Z8, Z9 = rear ring gear

Note:
Arrows point in direction of travel.
