Wiring Harness: Description and Operation

General

In the Audi A4 there are no longer any partial cable harnesses in the interior of the vehicle, only one complete wiring harness.

Wiring harness and connector repairs in the Audi A4 may only be carried out using the VAS1978 wiring harness repair kit.

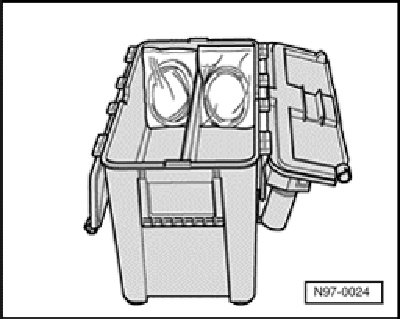

VAS1978 wiring harness repair kit

The VAS1978 is described in detail in the kits operating instructions.

Repairing breaks in the wiring harness and faulty harness connectors, for example, is also described.

NOTE: Effective immediately, harness connectors for the ABS system may also be repaired.
