Clockspring - Additional Wiring Removal
Group: 48Number: 01-01
Date: Jan. 30, 2001
Subject:
Replacement Coil Connector with Slip Ring
(Spiral Spring), Removing Additional Wiring
Model(s):
TT 2000, 2001
Condition

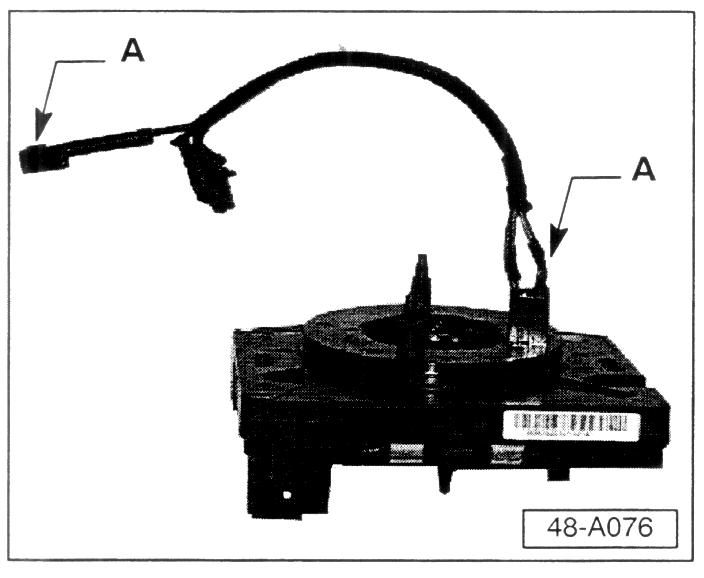

- Spiral spring, Part No: 1J0 959 654Q currently supplied as a replacement part includes a connector and wiring -A- which is used for heated steering wheel applications.
Service
Prior to installing Part No: 1JO 959 654Q:
CAUTION!
Part numbers are for reference only. Always check with your Parts Dept. for the latest parts in formation.
Remove connector -A- and wiring (Brown 0.3 mm and Black 0.3 mm wires) for heated steering wheel application as follows:
- Disconnect connector -A- for Brown 0.3 mm and Black 0.3 mm wires from spiral spring.

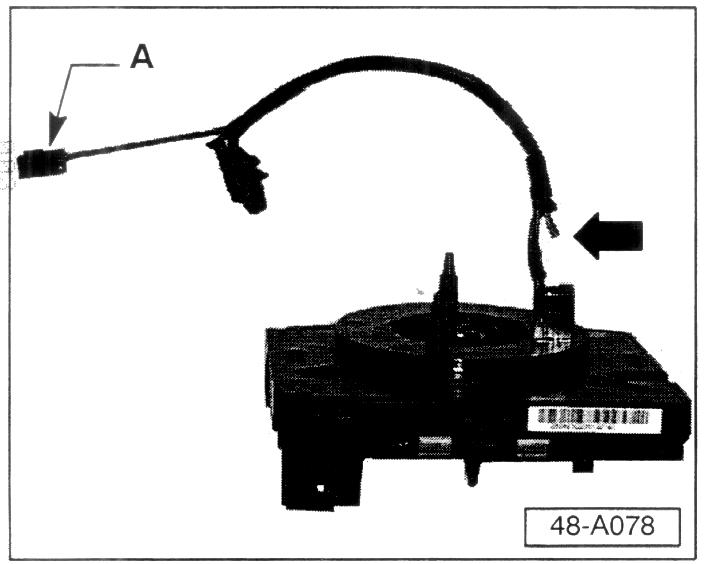

- Cut wires above removed connector (arrow).
- Pull connector -A- and wires from protective sleeve and discard.

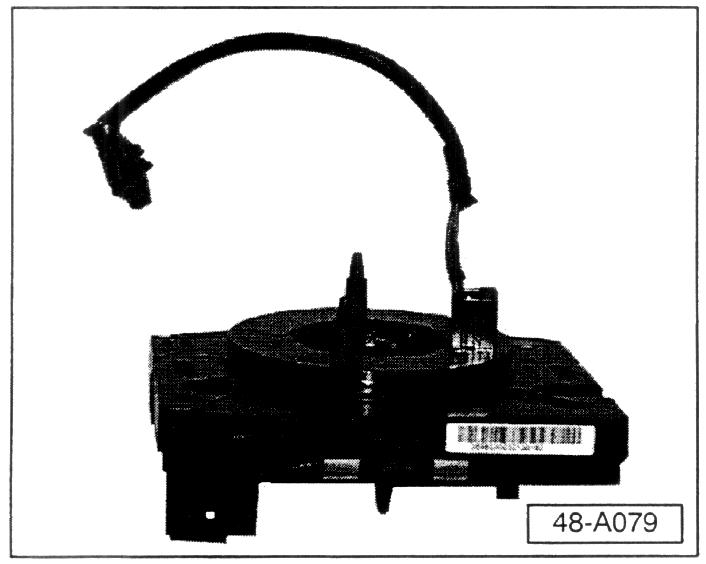

- Install spiral spring (see Repair Manual CD-Rom Repair Group-48).
