Windshield Washer Spray Nozzle: Service and Repair

Spray Jets, Removing And Installing

Removing
- Remove plenum cover.

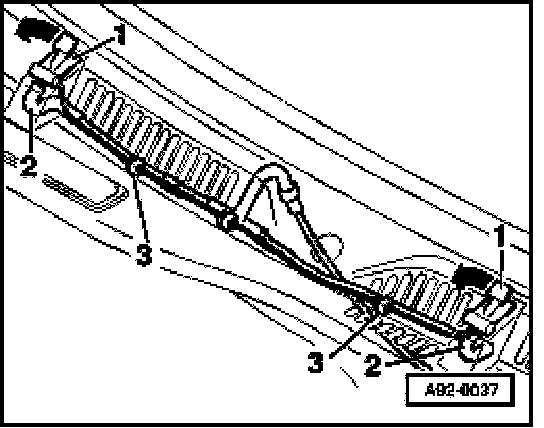

- Remove spray jet -1- (fan-shaped spray pattern) by turning in direction of arrow.
- Pull hose -2- off spray jets.
- Disconnect spray jet heater connector -3-.

Installing
- Install in reverse order of removal.
