License Plate Lamp: Service and Repair

License Plate Light, Removing And Installing

Removing

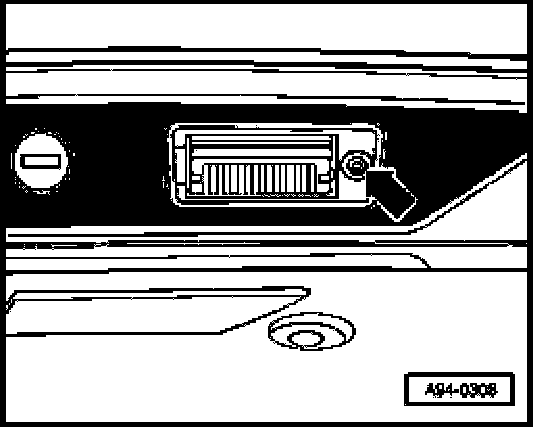

NOTE: The illustration shows right hand-license plate light.







- Remove bolt -arrow-in handle recess.
- Pry bulb carrier out of handle recess.
- Remove bulb (12 V, 5 W) from clamp-type holder.

Installing
Installation is carried out in the reverse order.
