Vacuum Vent Valve: Service and Repair

Vent Valves, Removing And Installing

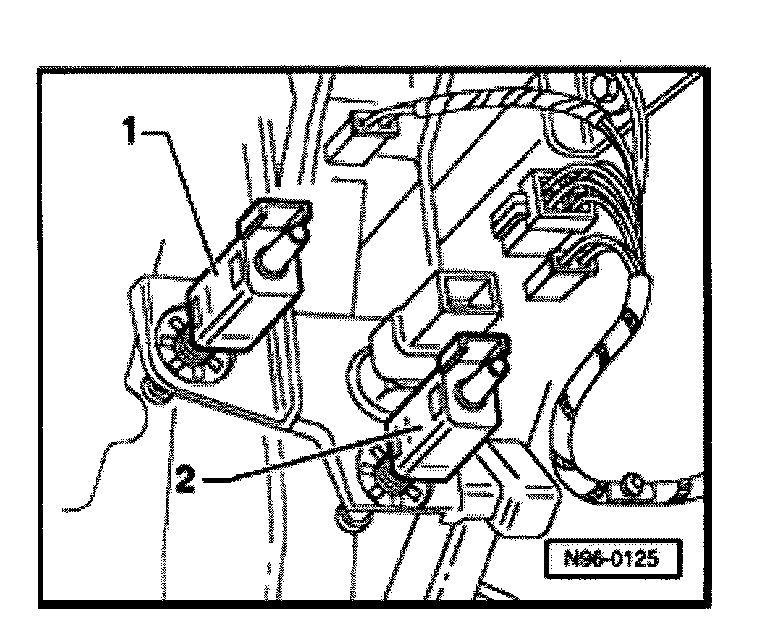

Follow the same procedure for both valves when removing and installing the clutch pedal vent valve -1- and the brake pedal vent valve -2-.

Removing
Follow the sequence of operations below:
- Disconnect harness connector and vacuum line.
- Push or rotate vent valve out of its bracket.

Installing


NOTE: To ensure that the valve is seated firmly enough, the valve may only be re-installed once.


- Pedal in released position

- Push vent valve into bracket as far as stop (e.g. using 10 mm box wrench); do not rotate it in.







A new bracket is being used as of model year 1998 >.

After installation, the vent valve must be in the following position:
a - 0 - 0.7 mm
1 - Pedal stop surface
2 - Pedal bracket
3 - Bracket
4 - Vent valve

- Connect harness connector and vacuum line.
