Operation CHARM
: Car repair manuals for everyone.
Home
>>
Audi
>>
2002
>>
A4 Sedan (8E2) L4-1.8L Turbo (AMB)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Testing and Inspection
>>

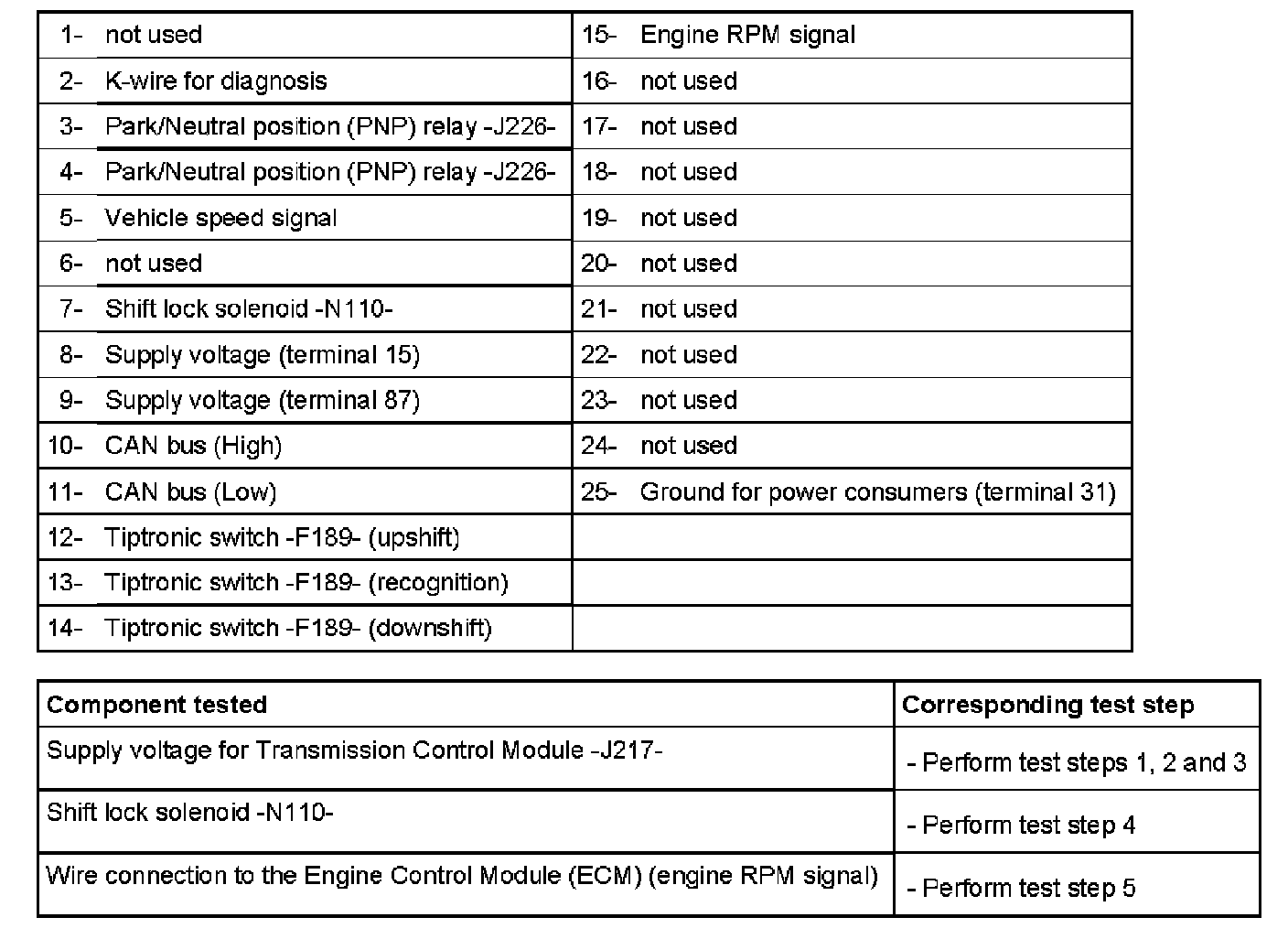

Multiple Harness Connector (25-Pin Connector) For Transmission Control Module ~J217- (Cavities on V.A.G 1598121)
Multiple Harness Connector (25-Pin Connector) For Transmission Control Module ~J217- (Cavities on V.A.G 1598121)
Part 2:
