Wiper Motor: Service and Repair

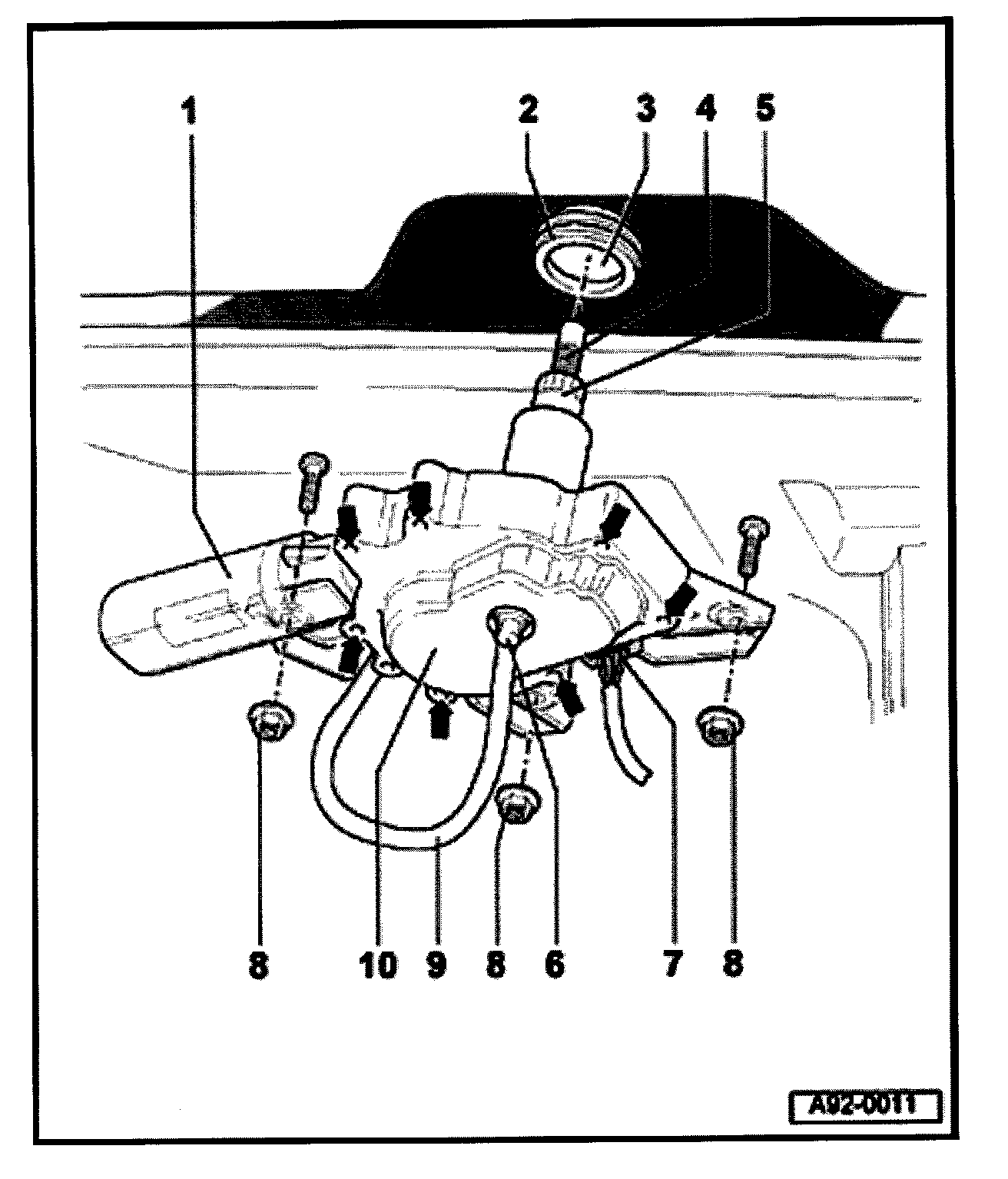

Rear Wiper Motor, Removing And Installing

1 - Wiper motor
2 - Rubber seal
3 - Hole in rear window
4 - Nozzle
5 - Drive shaft for rear wiper
6 - Connecting - pipe
7 - Harness connector
8 - Retaining nuts (3x)
9 - Hose
10 - Motor cover

- Remove rear wiper.
- Remove interior trim from tailgate
- Disconnect harness connector -7-.
- Carefully pull hose -9- off connecting pipe -6-.
- Loosen retaining nuts -8-.
- 8 Nm (71 in. lb)
- Remove wiper motor -1-.
- Install in reverse order of removal.


NOTE: During installation, carefully mount the rubber seal -2- in the hole in rear window -3-.
