Tie Down Hook / Bracket: Service and Repair

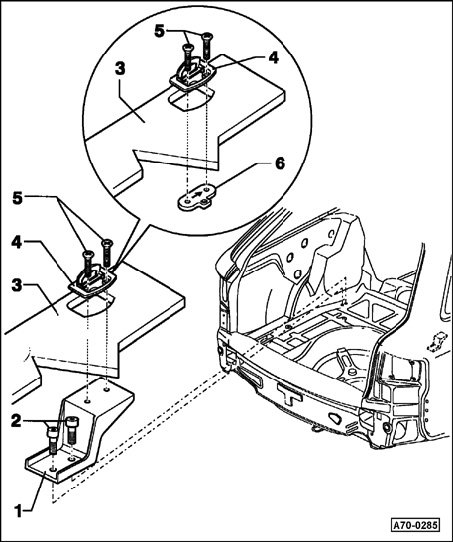

Fastening Bracket Ring

NOTE: Brackets for the fastening rings are only installed in front-wheel drive models; quattro models have base plate - 6 -.







1 - Fastening bracket tie down
- Remove screws - 5 - (4x).
- Remove eyelets - 4 -.
- Remove cargo area floor covering - 3 -.
- Remove screws - 2 - (2x).
2 - Screws (2x)
- Tightening torque: 4.5 Nm (40 in lb)
3 - Cargo area floor covering
4 - Fastening rings
5 - Screws (2x)
- Tightening torque: 4.5 Nm (40 in lb)
6 - Base plate
- - Arrow - points in direction of travel.
