License Plate Lamp: Service and Repair

License Plate Light, Removing and Installing

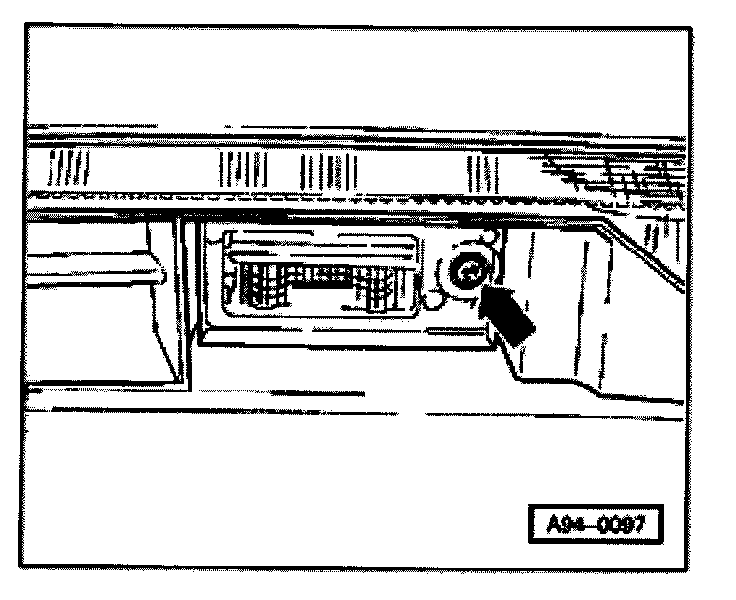

NOTE: Only the right license plate illumination is shown in illustration.


Removing







- Remove mounting screw -arrow- (Phillips head) in grip piece.
- Lever out bulb carrier from grip piece.
- Remove (12 V, 5 W) from terminal socket.

Installing
Installation is the reverse of removal.
