Cooling System - Coolant Lamp ON/Aux Coolant Pump Leaks: Overview

19 Auxiliary Coolant Pump, Leaking, Installing Repair Kit

19 10 11

2010725/7

August 11, 2010.

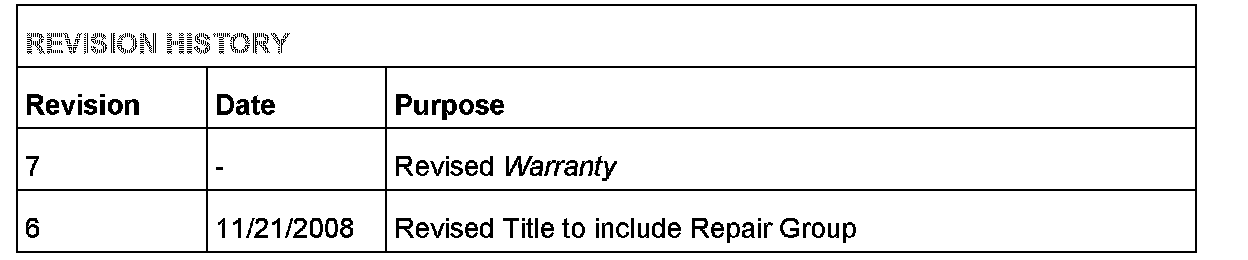

Supersedes Technical Service Bulletin Group 19 number 08-12 dated November 21, 2008 for reasons listed below.





Affected Vehicles





CONDITION

^ Coolant leakage around Auxiliary Coolant Pump.

^ Coolant light may be illuminated.

TECHNICAL BACKGROUND

Auxiliary Coolant Pump (located under intake manifold) may be leaking Coolant from pump body.

PRODUCTION SOLUTION

Not applicable.

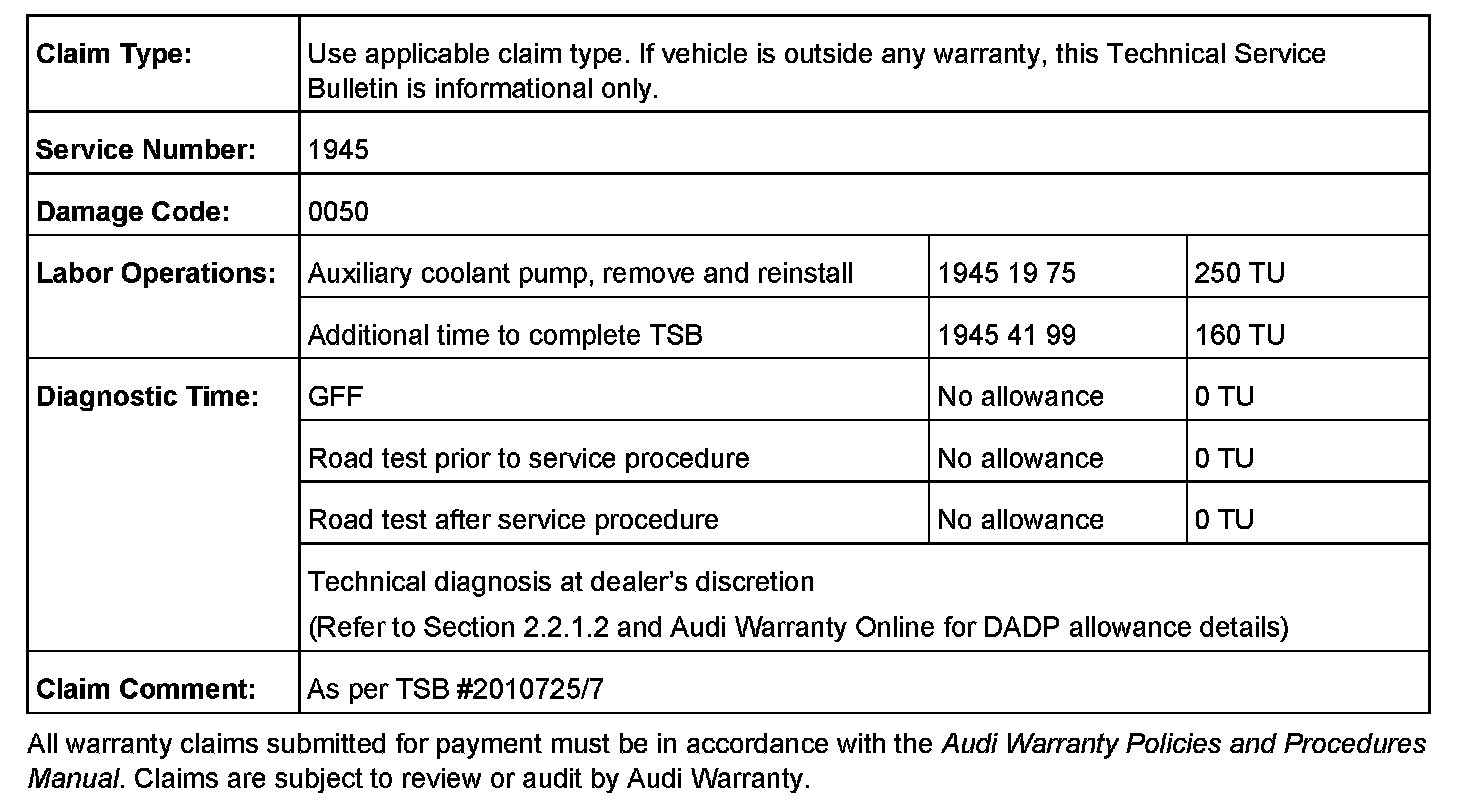

WARRANTY

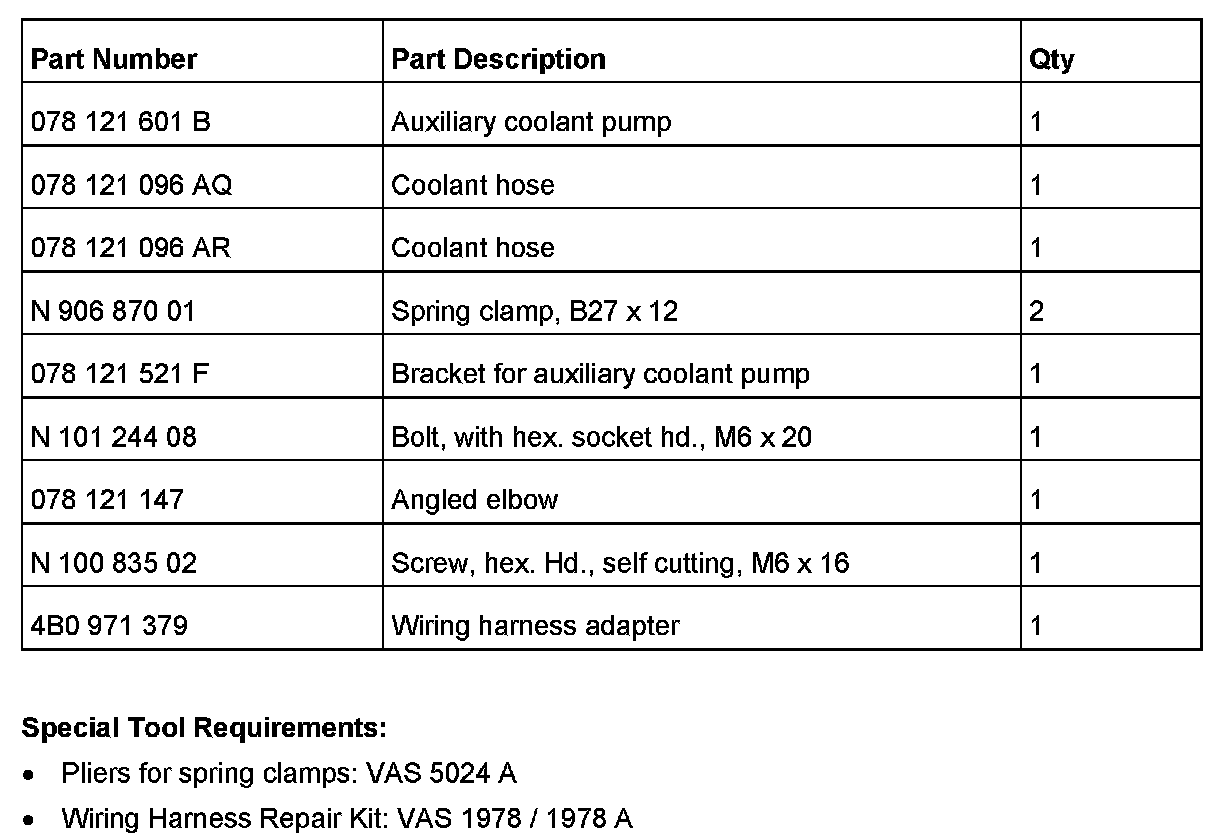

REQUIRED PARTS AND TOOLS

Tip:
Individual components of the auxiliary coolant pump repair kit Part No: 078 998 998, which may be replaced separately, consist of the following:





ADDITIONAL INFORMATION

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
