Windshield Washer Reservoir: Service and Repair

Washer Fluid Reservoir, Removing and Installing

Removing
- Remove left front wheel.
- Remove wheel housing liner, front left.

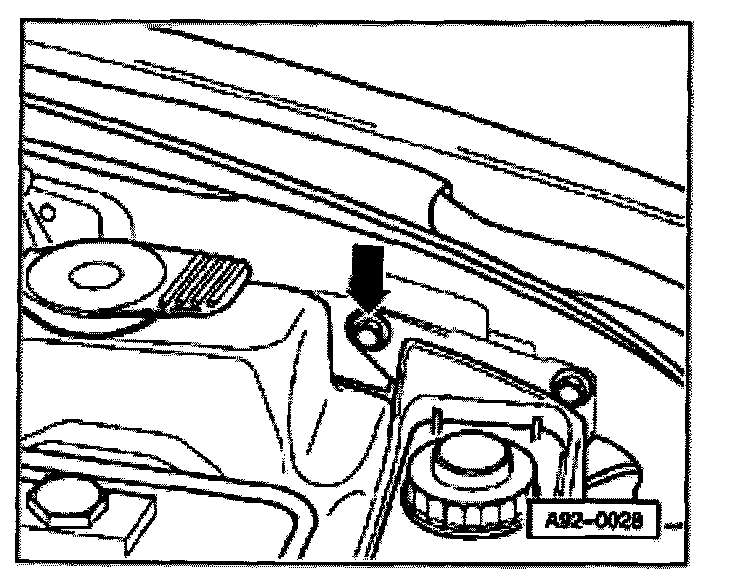

- Remove bolt (arrow).
- Disconnect harness connector at windshield washer pump.
- Remove windshield washer pump from washer fluid reservoir and remove washer fluid reservoir.

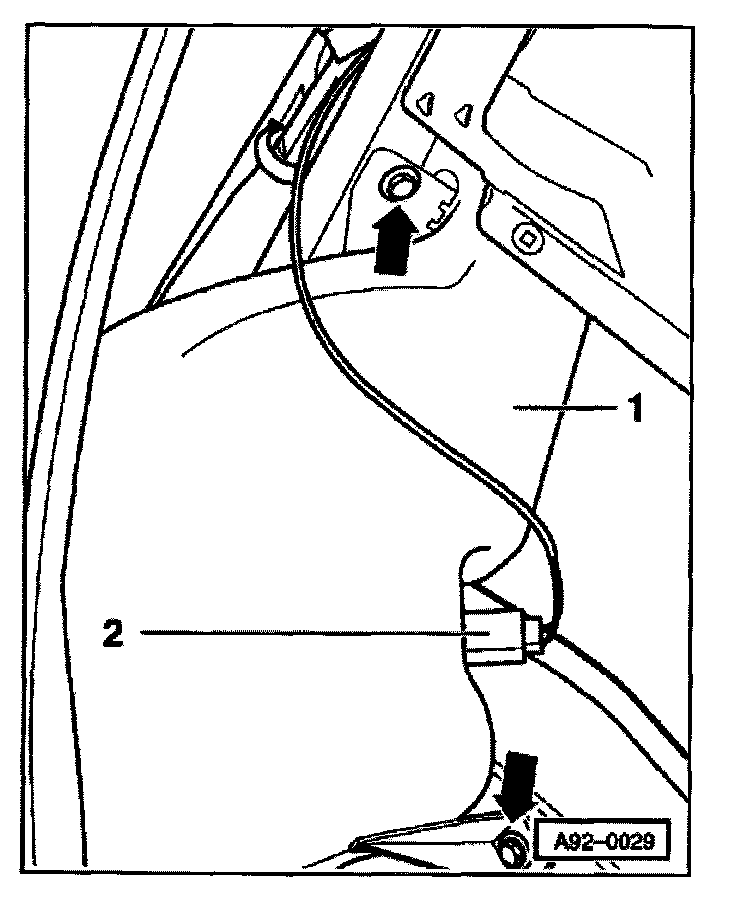

- Remove bolts (arrows).
- Disconnect electrical harness connector -2-.
- Remove washer fluid reservoir -1- downward and out of engine compartment.

Installing
Installation is the reverse of removal.
