Radio System, Overview

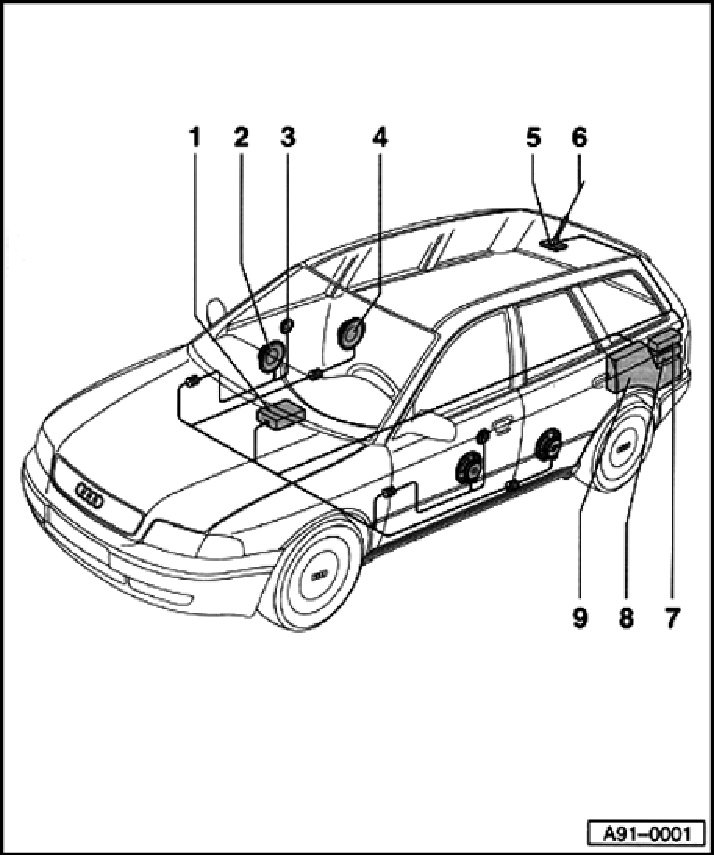

Radio System, Overview (Avant)







1 - Radio
- In center console
2 - Bass speaker
- In front door trim (bottom)
3 - Mid-range/treble speaker
- In front door trim (top)
4 - Broad band speaker
- In rear door trim
5 - Antenna base
- With integrated amplifier
6 - Roof antenna
- With radio and telephone system, combination antenna is used
7 - CD changer
- In luggage compartment (left-rear) under cargo area storage bin
- Checking cable between radio and CD changer
8 - BOSE amplifier combined with bass speaker (subwoofer) only with "Concert with BOSE sound system"
- In cargo area (left-rear) under side trim
9 - Bass speaker (subwoofer) only with "Concert" radio
- In cargo area (left-rear) under side trim
