Heater/Air Conditioner Assembly, Servicing

Heater/Air Conditioner Assembly, Servicing (1997 >)







CAUTION: A/C refrigerant system must be discharged before removing heater/air conditioner assembly.

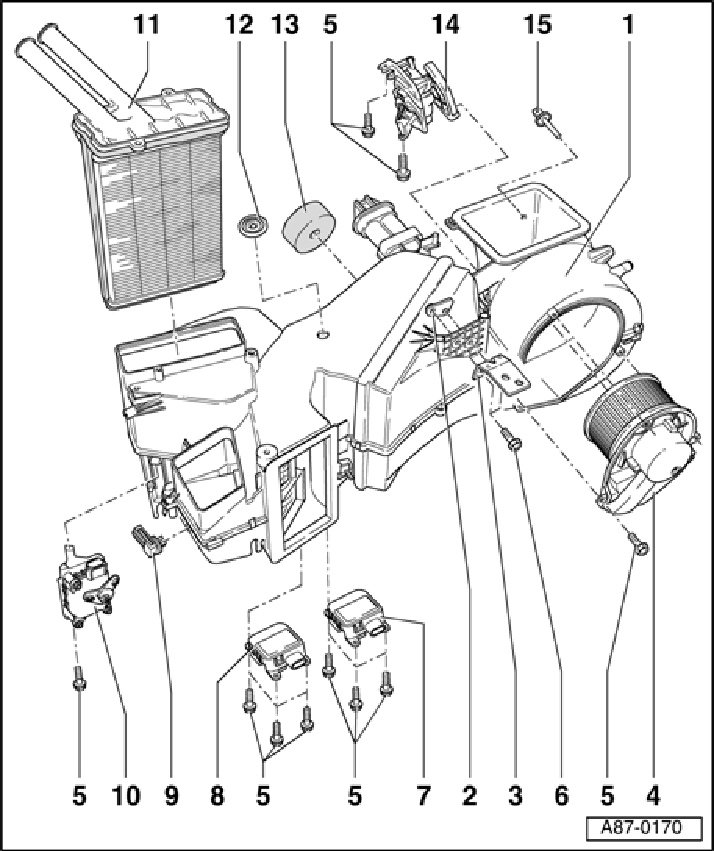

Removing heater/air conditioner assembly.

1 - Heater/air conditioner housing
- Assembly
2 - Retainer plate
3 - Bracket
- Note bracket orientation before removing.
4 - Fresh air blower assembly -V2- including control module for fresh air blower -J126-
- Fresh air blower, removing and installing
- Control module for fresh air blower
5 - Screw
6 - Screw
7 - Temperature regulator flap motor -V68-
- With temperature regulator flap motor position sensor -G92-
8 - Central air flap motor -V70-
- With central air flap motor position sensor-G112-
9 - Sender for outlet temperature, floor outlet -G192-
10 - Footwell/defroster flap motor -V85-
- With bracket
11 - Heater core
12 - Grommet
- Check for proper fit.
- Missing grommet will result in cold air entering footwell area
13 - Foam gasket
- Seals and routes condensed water from evaporator to drip guide
14 - Air flow flap motor -V71-*
- Operates air flow flap and the fresh air/recirculating air flap
- With back pressure flap motor position sensor -G113-
15 - Fresh air intake duct temperature sensor -G89-
