Pedal Cluster, Assembly Overview

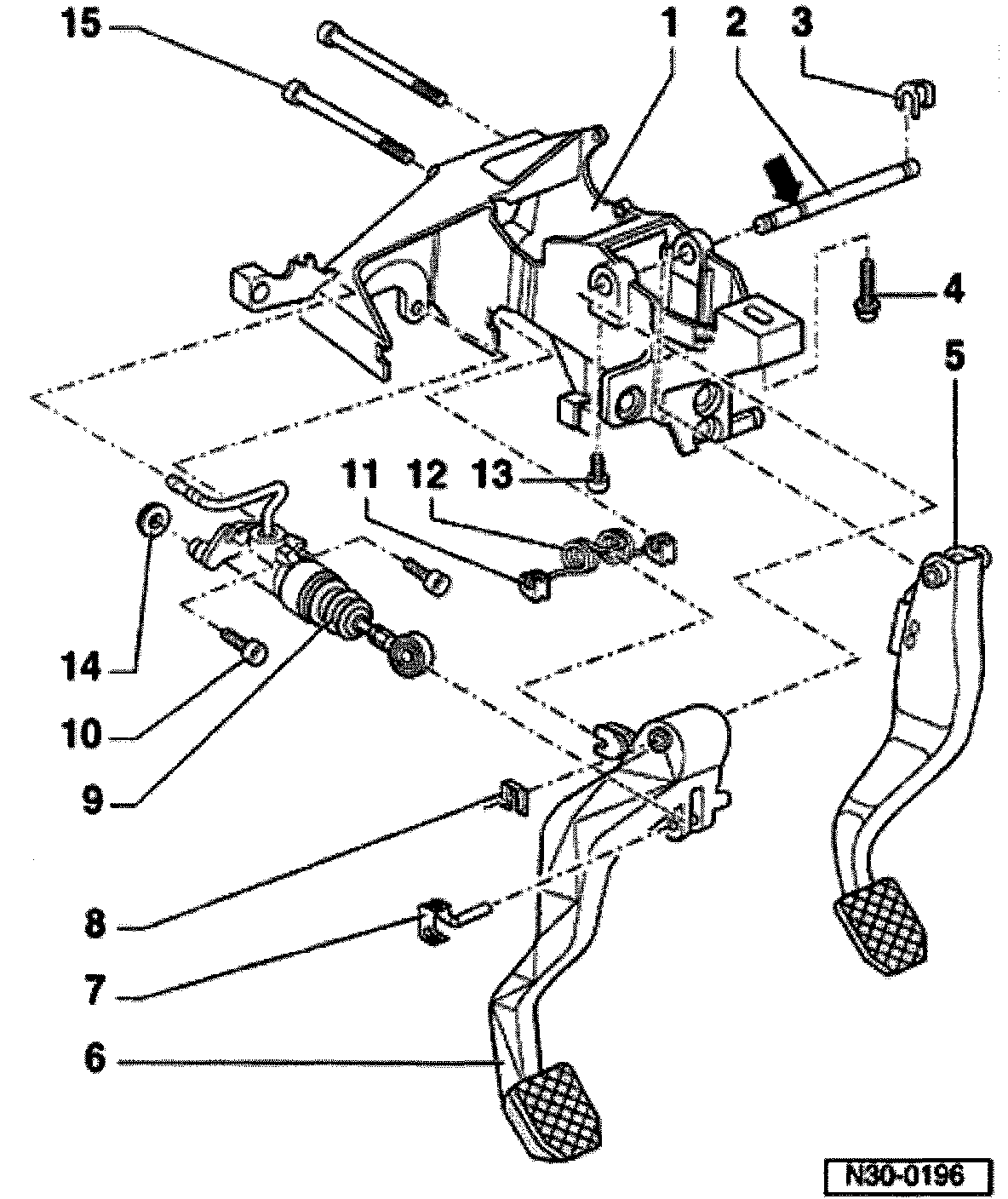

Pedal cluster, assembly overview
1. Mounting bracket
2. Pivot pin
3. Locking clip
4. Hex socket head bolt, 25 Nm
5. Brake pedal
6. Clutch pedal
7. Pin
^ Clip onto clutch pedal
8. Locking clip
9. Master cylinder
10. Hex socket head bolt, 20 Nm
11. Mounting
12. Overcenter spring
13. Hex socket head bolt, 5 Nm
14. Seal
15. Torx bolt -25 Nm
