Rear Wiper Chatter, Correcting

Rear Wiper Chatter, Correcting

Special tools test equipment and auxiliary items

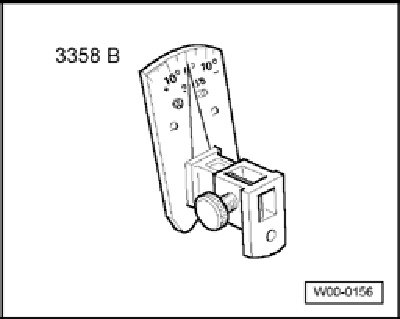

3358 B Windshield wiper adjuster

Possible causes.

Checking wiper arm angle
- Bring wiper arms into park position.
- Remove wiper blade.







- Insert wiper arm -2- into 3358 B windshield wiper adjuster and lock in place with stop screw -3-.
- Compare displayed angle with specified value in table below.

Rear wiper arm angle for Audi A4
Specification 0 degree
Tolerance +2 degrees

Adjusting the wiper arm.
