Air Duct: Locations

Instrument Panel Vents And Air Ducts

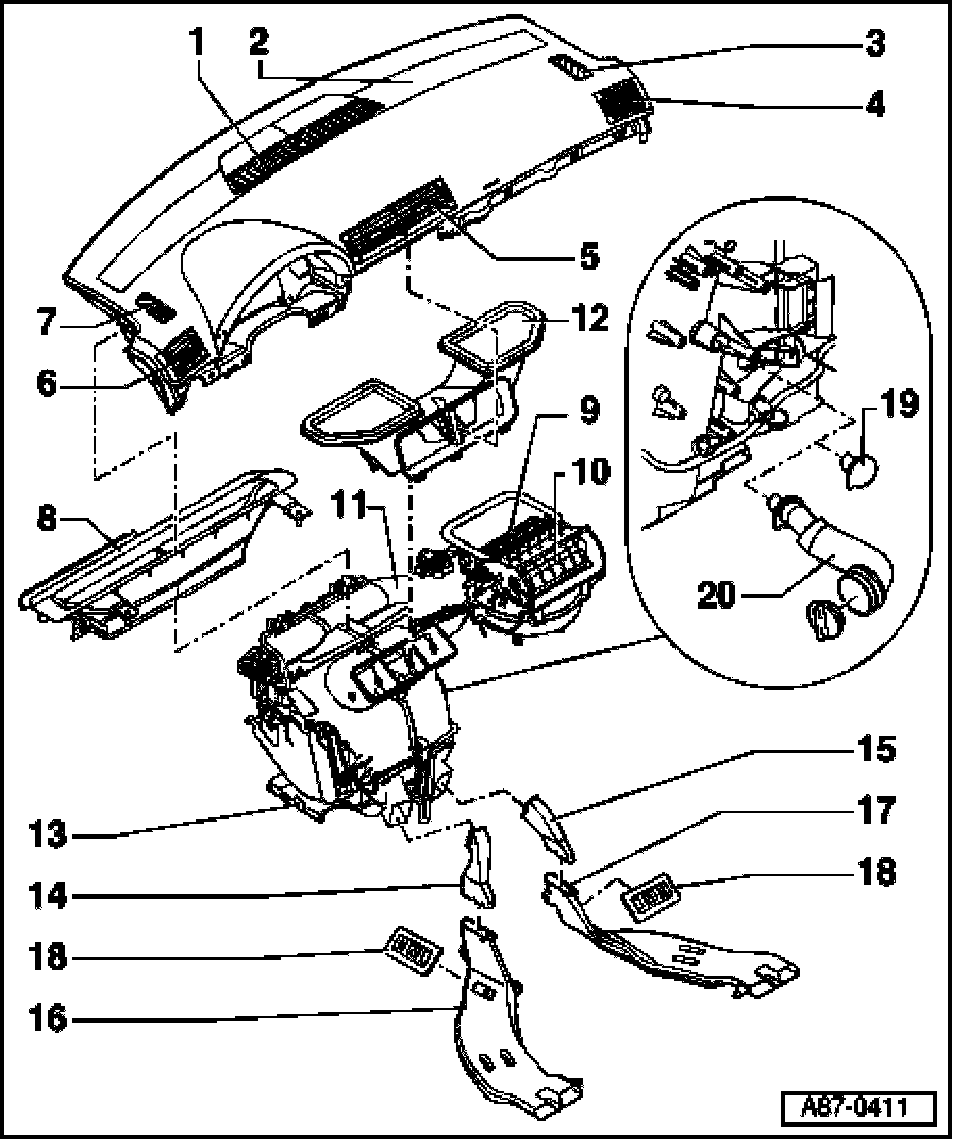

Air ducts in vehicle interior

NOTE: The ventilation of the passenger compartment occurs via two air extraction outlets (in luggage compartment right and left near the bumper).







1 - Defroster outlet vent
- For front windshield
- If the Intermediate piece between air conditioner and air duct in the instrument panel has been pinched during installation, the air guide to the front windshield is uneven or insufficient.
2 - Instrument panel
- With air ducts to defroster vents and instrument panel vents driver and passenger side
3 - Defroster outlet vent
- Side window/passenger side
4 - Instrument panel vents
- Passenger-side
5 - Instrument panel vents
- Center
6 - Instrument panel vents
- Driver-side
7 - Defroster outlet vent
- Side window/driver side
8 - Intermediate piece/defroster channel
9 - Fresh air intake
- The air is sucked through the dust and pollen filter which is installed in the plenum chamber.
10 - Recirculated air intake
- The air is sucked beneath the glove compartment from the passenger side footwell.
11 - Air conditioner
- A/C unit, removing and installing.
12 - Air duct /Instrument panel vents
- Center
13 - Footwell vents front
- Driver and passenger side
14 - Intermediate piece to air duct rear footwell vent
- Driver-side
15 - Intermediate piece to air duct rear footwell vent
- Passenger-side
16 - Air duct footwell vents rear
- Driver-side
17 - Air duct footwell vents rear
- Passenger-side
18 - Trim with vent holes
19 - Sealing plug
- Only on vehicles without glove compartment cooling.
20 - Air duct for glove compartment
- Only on vehicles with glove compartment cooling.
