Condenser HVAC: Service and Repair

Condenser, Removing And Installing

Removing
- Discharge A/C refrigerant system
- Disconnect refrigerant lines from condenser.

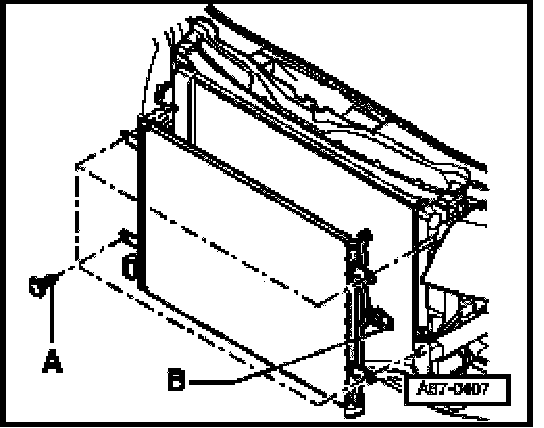

- Remove air duct between bumper and condenser.
- Disconnect connector from High Pressure Sensor -G65- -B-.







- Remove bolts -A- (tightening torque 5 Nm).

Installing
Installation is the reverse of removal.
